Plan Description

This three-bedroom ranch home exudes style with its craftsman details, shuttered windows and stone accents. As you set foot in the front door, the vaulted entry leads your eye to the great room directly ahead where another vault continues the story. The kitchen, complete with breakfast bar that overlooks the bay window in the dining area, lies adjacent to the left of the great room. The master is located behind the garage away from the other two bedrooms on the right side of the home, to provide maximum privacy for mom and dad. A two-stall garage completes the home.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

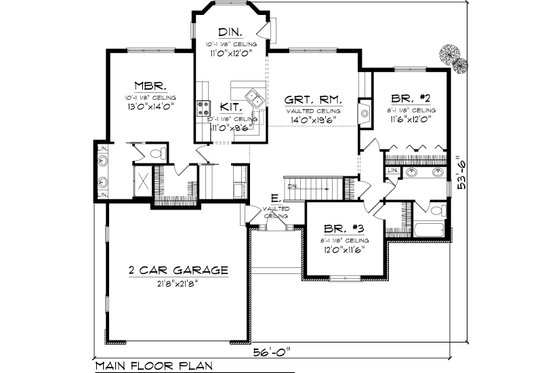

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 1

Garages: 2

Dimension

Depth : 53' 6"

Height : 24' 2"

Width : 56'

Area

Total : 1616 sq/ft

First Floor: 1616 sq/ft

Garage: 483 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Master Bdrm/Kitchen/Dining Rm 10'Grt Rm/Entry Vaulted

Main Ceiling : 8'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47

Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Siding, Shake, Stone

Framing : 2 x 6

Insulation : 19

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Basement:

width 56' x depth 52' 4"

Bedroom 2:

width 11' 6" x depth 12'

Bedroom 2 Closet:

width 9' 8" x depth 2' 1"

Bedroom 3:

width 12' x depth 11' 6"

Bedroom 3 Closet:

width 4' x depth 5' 7"

Dining Room:

width 11' 10" x depth 12'

Foyer:

width 5' 6" x depth 9' 8"

Garage:

483 sq/ft width 21' 8" x depth 21' 8"

Great Room:

width 14' x depth 19' 6"

Hall:

width 3' 8" x depth 7' 8"

Hall Closet:

width 2' 1" x depth 3' 5"

Kitchen:

width 11' x depth 9' 6"

Laundry:

width 7' 8" x depth 5' 4"

Master Bedroom:

width 13' x depth 14'

Master Walk In Closet:

width 6' 9" x depth 6' 4"

Porch Front:

width 8' 8" x depth 6'

What's included in this plan set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Pricing

Plan Options

5 Copy Set

$973.00

5 printed plan sets mailed to you.

8 Copy Set

$1016.00

8 printed plan sets mailed to you.

PDF Set

Best Value!

$1215.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1215.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1921.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Basement

$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$395.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$395.00

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$395.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$75.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
