Plan 930-154

Plan 930-154
2433 sq/ft,
3 beds,
3 baths,
70' 2" wide,
53' deep

Pricing

Plan Set
PDF Set
$1289.00
CAD Set
$2190.00
Foundation
Island Basement
+$0.00
Framing
Wood 2x6
$0.00
Additional Construction Sets
Each Additional Set
+$65.00/each
Audio Video Design
Each
$165.00
Construction Guide
Each
$39.00
Material List
Each
+$195.00

House Features

Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Exercise Room
Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Balcony
Courtyard
Covered Rear Porch
Deck
Wheelchair Adaptable

Styles Classifications

Craftsman
Ranch
Country

Specifications

First Floor
2433 sq/ft
Depth
53'
Height
33'
Width
70' 2"
Primary Pitch
10:12
Roof Framing
Truss
Roof Type
Shingle

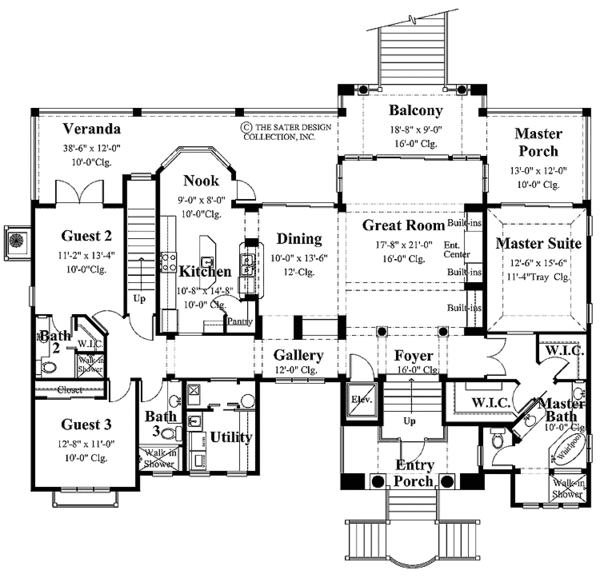

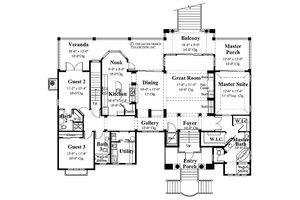

Floor Plan - Main Floor

Craftsman Floor Plan - Main Floor Plan #930-154

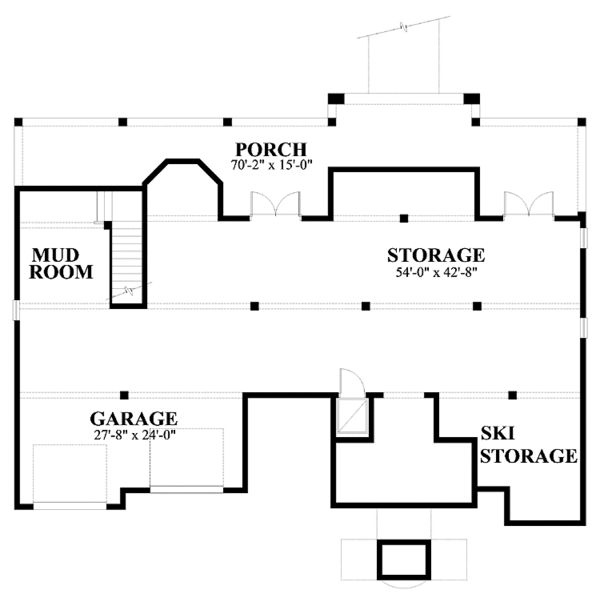

Floor Plan - Lower Floor

Craftsman Floor Plan - Lower Floor Plan #930-154
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/2433-square-feet-3-bedroom-3-00-bathroom-2-garage-craftsman-sp219859

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
