Plan 17-3233

Plan 17-3233
3130 sq/ft,
3 beds,
3.5 baths,
60' 2" wide,
60' 2" deep

Pricing

Plan Set
PDF Set
$1200.00
5 Copy Set
$1300.00
5 Copy and PDF Set
$1550.00
PDF Unlimited Build
$1900.00
CAD Set
$2400.00
CAD Unlimited Build
$2400.00
Foundation
Crawlspace
+$0.00
Slab
+$0.00
Basement
+$299.00
Daylight Basement
+$299.00
Framing
Wood 2x4
$0.00
Wood 2x6
$299.00
Right-Reading Reverse
Each
+$299.00
Additional Construction Sets
Each Additional Set
+$80.00/each
Audio Video Design
Each
$100.00
Comprehensive Material List
Each
$395.00
Construction Guide
Each
$39.00
Roof Framing Detail
Each
$149.00

House Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Island
Kitchenette Wet Bar
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Workshop
Wrap Around Porch
Wheelchair Adaptable

Styles Classifications

Southern

Specifications

Bonus
1744 sq/ft
First Floor
1600 sq/ft height 9'
Second Floor
1530 sq/ft height 9'
Depth
60' 2"
Height
48'
Width
60' 2"
Primary Pitch
6:12
Roof Framing
Conventional
Roof Type
Asphalt

Floor Plan - Other Floor

Southern Floor Plan - Other Floor Plan #17-3233

Floor Plan - Lower Floor

Southern Floor Plan - Lower Floor Plan #17-3233

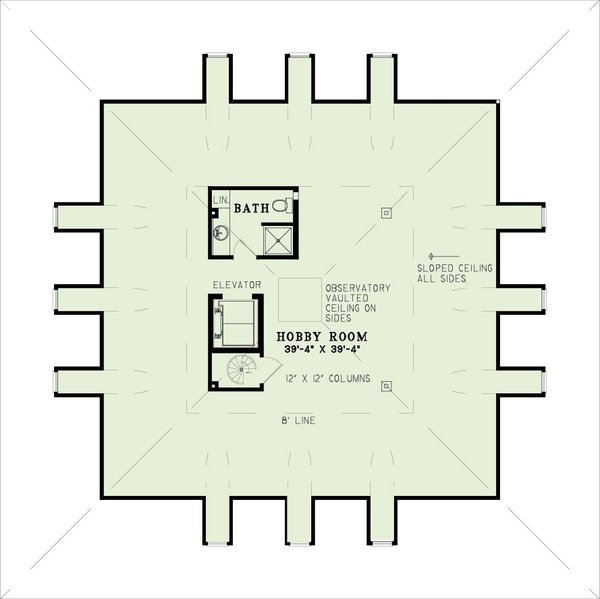

Floor Plan - Other Floor

Southern Floor Plan - Other Floor Plan #17-3233

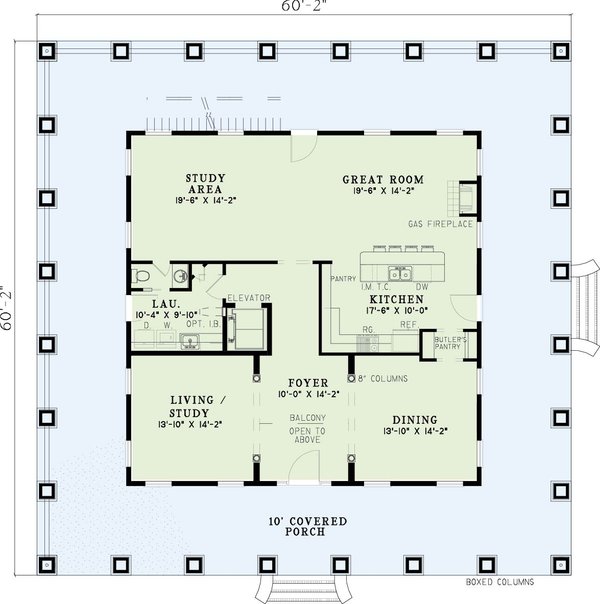

Floor Plan - Main Floor

Southern Floor Plan - Main Floor Plan #17-3233

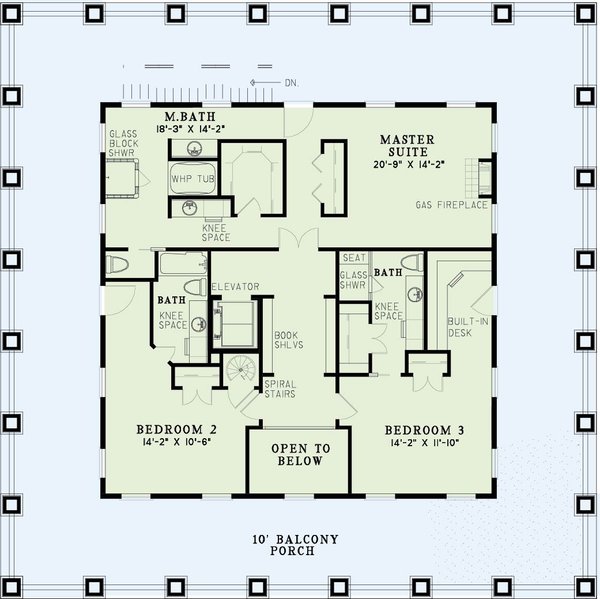

Floor Plan - Upper Floor

Southern Floor Plan - Upper Floor Plan #17-3233

Floor Plan - Other Floor

Southern Floor Plan - Other Floor Plan #17-3233
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/3130-square-feet-3-bedroom-3-50-bathroom-0-garage-southern-sp304054

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
