Plan 1066-140

Plan 1066-140
6790 sq/ft,
6 beds,
6.5 baths,
69' 10" wide,
109' 1" deep

Pricing

Plan Set
PDF Set
$3395.00
5 Copy Set
$3695.00
8 Copy Set
$3845.00
CAD Set
$6451.00
Foundation
Daylight Basement
+$0.00
Crawlspace
+$300.00
Slab
+$300.00
Framing
Wood 2x6
$0.00
Right-Reading Reverse
Each
+$250.00
Audio Video Design
Each
$165.00
Comprehensive Material List
Each
$495.00
Lighting Design
Each
$165.00
Mirror Reversed Sets
Each Additional Set
+$350.00

House Features

Main Floor Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Mud Room
Upstairs Laundry
Front Entry Garage
Side Entry Garage

Styles Classifications

Contemporary
European

Specifications

Decks
507 sq/ft
Garage
1275 sq/ft
Lower Floor
1225 sq/ft
Main Floor
3134 sq/ft
Patios
328 sq/ft
Porch
95 sq/ft
Upper Floor
2431 sq/ft
Depth
109' 1"
Height
28' 11"
Width
69' 10"
Primary Pitch
4/12
Roof Framing
Truss
Roof Load
25
Roof Type
Composition Shingles
Secondary Pitch
2/12
Ceiling Details
Family room and entry foyer ceilings are open to above. Dining room and office ceilings are coffered.
Garage Ceiling
11' 6"
Lower Ceiling
9'
Main Ceiling
10'
Upper Ceiling Ft
9'

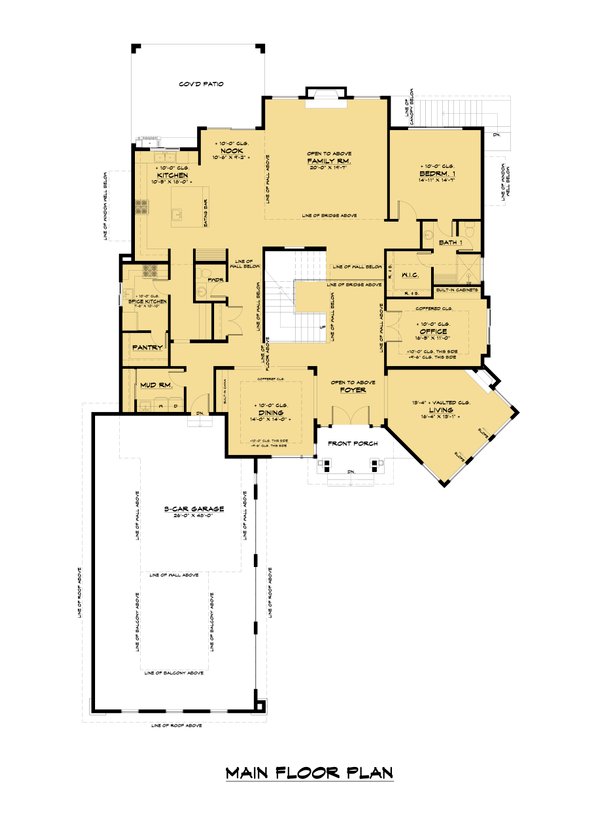

Floor Plan - Main Floor

Contemporary Floor Plan - Main Floor Plan #1066-140

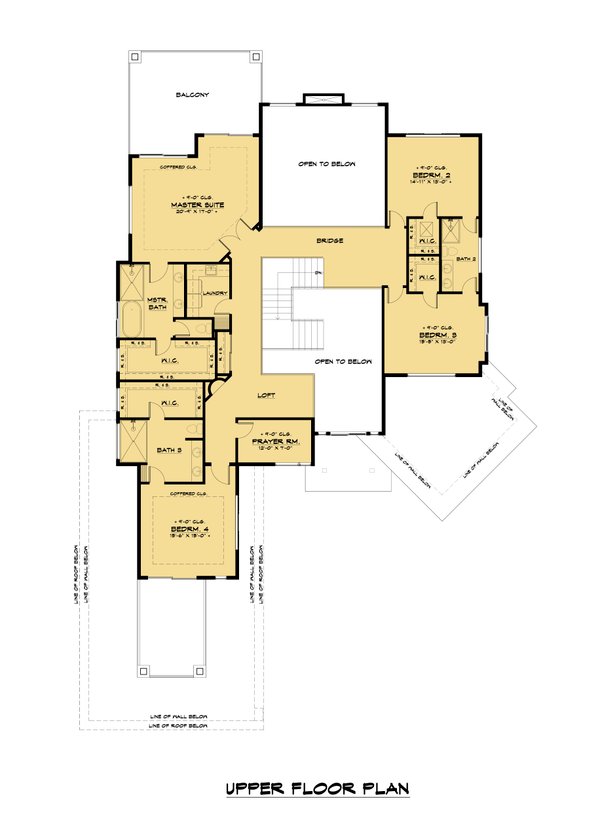

Floor Plan - Upper Floor

Contemporary Floor Plan - Upper Floor Plan #1066-140

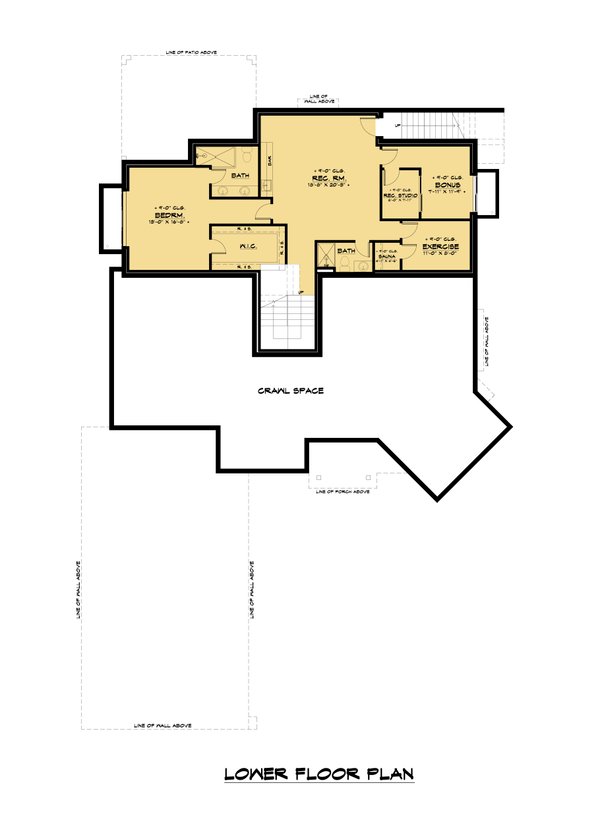

Floor Plan - Lower Floor

Contemporary Floor Plan - Lower Floor Plan #1066-140
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/6790-square-feet-6-bedroom-6-5-bathroom-3-garage-contemporary-european-sp291040

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.
