Plan 1083-2

Plan 1083-2
6541 sq/ft,
4 beds,
4.5 baths,
85' wide,
112' deep

Pricing

Plan Set
CAD Set
$3600.00
PDF Set
$3600.00
Reproducible Set
$3600.00
Single Set
$3600.00
Foundation
Slab
+$0.00
Framing
Block
$0.00
Wood 2x4
$550.00
Wood 2x6
$550.00
Wood 2x8
$550.00
Right-Reading Reverse
Each
+$550.00
Audio Video Design
Each
$165.00
Construction Guide
Each
$39.00
Lighting Design
Each
$165.00

House Features

Guest Suite
Split Bedrooms
Walk In Closet
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Den Office Study Computer
Great Room Living Room
Mud Room
Wet Bar
Oversized Garage
Side Entry Garage
Suited For Corner Lot
Suited For View Lot
Outdoor Kitchen Grill

Styles Classifications

Beach
Mediterranean

Specifications

Garage
868 sq/ft
Main Floor
4367 sq/ft
Patios
1216 sq/ft
Porch
90 sq/ft
Depth
112'
Height
26' 5"
Width
85'
Primary Pitch
6:12
Roof Type
Trusses
Secondary Pitch
8:12
Ceiling Details
Vaulted Ceilings in entry, family, lanai and master suite
Garage Ceiling
10'
Lower Ceiling
10'
Main Ceiling
12'

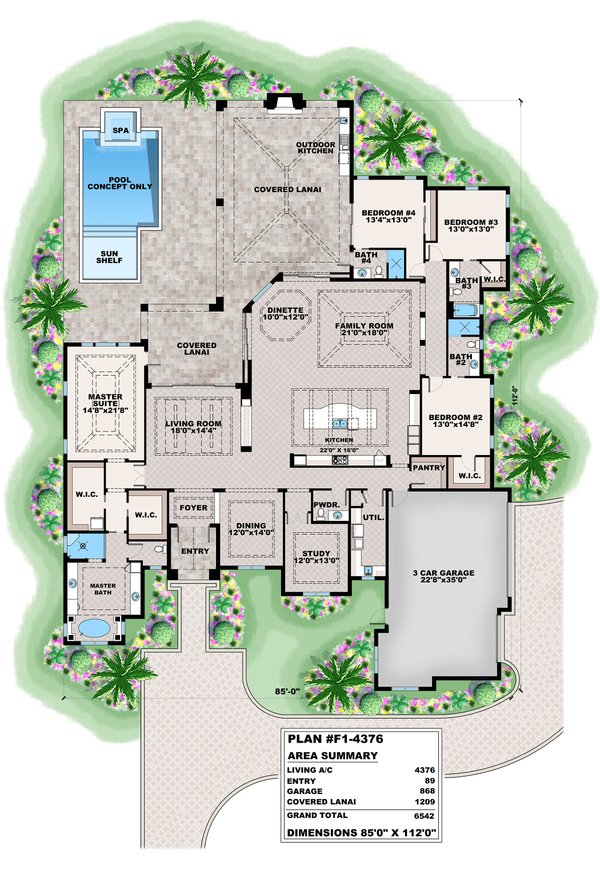

Floor Plan - Main Floor

Beach Floor Plan - Main Floor Plan #1083-2
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/6541-square-feet-4-bedroom-4-5-bathroom-3-garage-beach-sp303076

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
