Plan 1088-7

Plan 1088-7
3861 sq/ft,
3 beds,
3.5 baths,
98' 3" wide,
65' 8" deep

Pricing

Plan Set
PDF Master Set
$2065.00
CAD Single Build
$2665.00
Foundation
Crawlspace
+$0.00
Framing
Wood 2x4
$0.00

House Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Butler's Pantry
Kitchen Island
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Side Entry Garage
Split Garage
Friend S Entry
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Screened Porch
Unusual Shape

Styles Classifications

Farmhouse
Traditional

Specifications

Garage
920 sq/ft
Main Floor
2766 sq/ft
Optional Bonus Room
916 sq/ft
Porch
869 sq/ft
Upper Floor
1095 sq/ft
Depth
65' 8"
Height
32'
Width
98' 3"
Primary Pitch
10/12
Roof Framing
Rafters
Roof Load
20lbs per sf
Roof Type
Gable
Secondary Pitch
14/12
Ceiling Details

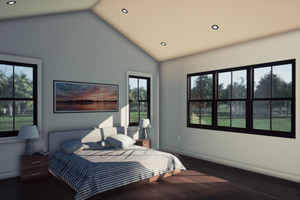

Master and great room have cathedral ceilings.
Garage Ceiling
11' 3"
Main Ceiling
10' 1"
Upper Ceiling Ft
9' 1"

Floor Plan - Upper Floor

Farmhouse Floor Plan - Upper Floor Plan #1088-7

Floor Plan - Main Floor

Farmhouse Floor Plan - Main Floor Plan #1088-7
Houseplans.com
Questions about this plan? Visit Houseplans.com today or call 1-800-913-2350

View this plan at https://www.houseplans.com/plan/3861-square-feet-3-bedroom-3-5-bathroom-2-garage-farmhouse-traditional-sp322140

In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. You may also need a septic design unless your lot is served by a sanitary sewer system. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance.

To find out what documents you should expect with your house plans, see https://www.houseplans.com/whats-included.

In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. Examples of this would be earthquake-prone areas of California and the Pacific Coast, hurricane risk areas of the Florida, Gulf & Carolina Coasts. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit.

Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping. In addition, plans which are used to construct homes in Nevada are required to be drawn by a licensed Nevada architect.

Note: All sales on house plans are final. No refunds or exchanges can be given once your order has been fulfilled or once we have begun to customize a home plan to your specifications.
