Cabin House Plan 452-3

Key Specs


Plan Sq Ft

1015
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

2
Floors

Plan Garages

0
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
Additional Construction Sets$40.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$80.00
$31.20
$80.00
Mirror Reversed Sets$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal
NOW $2000.00
You save $500.00
(20% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
Only $1.99 for Black Friday
Use Code CTBBF (limit 1)
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

1015
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

2
Floors

Plan Garages

0
Garages

Plan Description


The High Sierra Cabin is an award winning design that has been featured in Sunset magazine (August, 2006) and Tahoe Quarterly magazine (2005 special mountain home issue). The original design overlooks a rugged wilderness high in the Sierra Nevada mountains of California. This off grid cabin is isolated and snowed in much of the year. It is used almost every weekend, has self sufficient power and heating and is protected from deep snows and vandalism. The design is patterned after the humble mountain utility buildings common in the region. The owners required a rugged fireproof high security cabin contrasted with a very bright modern interior. The structure is made from structural insulated panels which were prefabricated then shipped to the job site ready to assemble. This process considerably shortened the on site construction time in this remote location. When a building project is many miles, (and out of cell phone range) from the nearest supplies it is convenient to have hundreds parts to handle (prefabricated S.I.P.) instead of tens of thousands (regular wood frame construction). Outside the S.I.P. walls are clad with zinc aluminum corrugated metal and the S.I.P. roof is topped off with standing steam metal roofing for textural variety. The surrounding porch, which nearly doubles the usable floor area, is constructed of native douglas fir and ironwood decking. The detailing is intentionally simple and unembellished. The windows and gliding glass doors are secured with sliding shutters secured from the interior. One hidden keyed lock permits access. Inside, the furnishings and detailing is Swedish Modern with laminate flooring, cable railings, and simple douglas fir trim. Clearstory windows and vent skylights give an extraordinary interior brightness to enhance the winter light and accentuate the art filled colorful interior. Electric power is provided by solar photovoltaic panels on the roof with battery storage. Propane is used for cooking, backup for passive solar water preheating and for the backup electrical generator. The S.I.P. weather skin is an excellent foil for the deep snows, heavy winds, and insulates so well that a small Scandinavian wood stove easily and quickly heats the interior. This tough yet elegant cabin requires very little maintenance and provides maximum comfort, security and fireproofing in an extreme climate. This cabin can be adapted to any aesthetic taste or neighborhood by finishing the outside with any kind of roofing from shingle to tile and the exterior walls with stucco, wood, cement fiber, lap siding, shingles or stucco. By using colored metal roofing and siding the design can take on the hues of sky, forest, desert or even camo if one desires.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

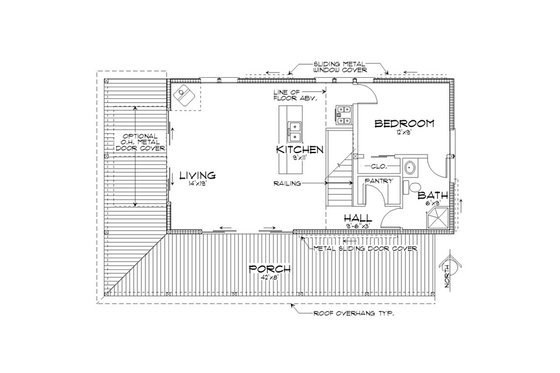

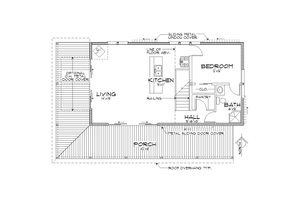

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

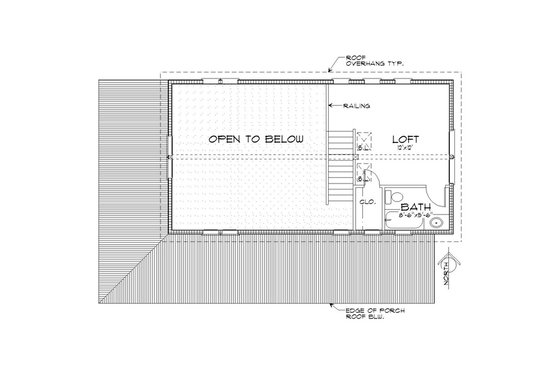

Floor Plan - Upper Floor
