Plan Description

Double doors, a clerestory style roof dormer and a columned porch all add a sense of charm to this apartment garage. The living room has a separate entry with a coat closet, a corner fireplace, and 9' glass sliding doors to a rear patio. Open to the living room, the U-shaped kitchen has a snack bar and adjacent laundry area with large storage pantry. The spacious master bedroom has double walk-in closets, a nice bath with a linen closet nearby and an adjacent loft with corner windows, perfect for a study.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

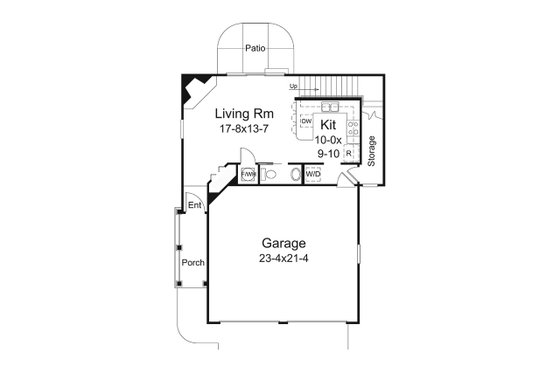

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

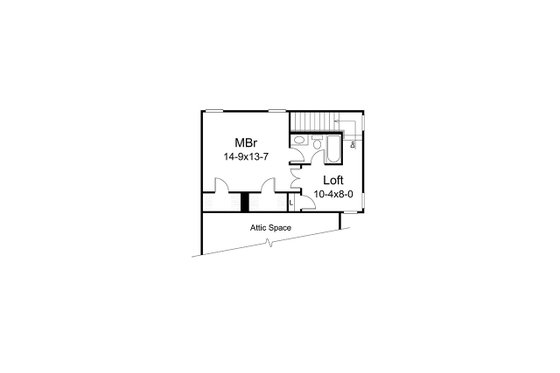

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 1

Baths : 1

Stories: 2

Garages: 2

Dimension

Depth : 39' 4"

Height : 21' 6"

Width : 32' 8"

Area

Total : 1086 sq/ft

Main Floor : 591 sq/ft

Porch : 150 sq/ft

Upper Floor : 495 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Roof Type : Composite Shingle

Secondary Pitch : 3:12

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2x4

Bedroom Features

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Great Room Living Room

Loft

Main Floor Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Economical To Build

Empty Nester

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

See a sample plan set

COVERSHEET: The coversheet has a rendering showing the house as it will look when it is built. In most cases this is not required for house construction. The purpose of the coversheet is to give the homeowner a visual representation of how the home will look when it is completed.
FOUNDATION PLAN: The foundation plan is used to show how the foundation should be built. It explains the thickness of the foundation walls, floor joist sizes and spacing, column locations, window/door/vent locations and sizes, suggested furnace/water heater locations, plumbing (where required) and miscellaneous construction details related to the foundation and basement.
FLOOR PLAN(S): The floor plans of the home indicate the layout/construction of each floor of the house. Items typically included are room dimensions, wall sizes, plumbing electrical locations, stair locations, door/window sizes, kitchen and bath layouts, ceiling conditions in each space, flooring, structural information and any special conditions related to the floor plan.
ELEVATIONS: The elevation sheets communicate the material/dimensions that the designer envisioned, creating the correct look and feel on the outside of the house. Some of the items typically shown on an elevation sheet include materials used on the exterior of the house, size and shape of windows and doors, size and shape of vents, size of the trim, height and dimensions of various elements, depth of foundations, types of shingles and moldings, pitch of the roof, placement of materials (example: brick soldier course, brick quoins, etc.), roof plan, and location of gutters and downspouts.
DETAILS: The details include an explanation of how the smaller items are to be designed and constructed. Examples include the dimensions and appearance of a stair handrail, room moldings, design of railing spindles for staircases, and description of how a fireplace should look. The designer may add details for anything a builder needs to understand the design of the house.
SECTIONS: The sections show how the parts of the building fit together. Typical sections include walls, fireplace, and stairs. The designer may add sections in a set for anything a builder needs to understand about the construction of the house.
INTERIOR ELEVATIONS: The interior elevations show pictures of how key interior features should look. Typical items and areas that are drawn include fireplaces, kitchens, and bathrooms.
