Craftsman House Plan 120-170 1346 sq ft, 3 bed, 2.5 bath, 2 floor, 2 garage

Name: Craftsman Style House Plan - 3 Beds 2.5 Baths 1346 Sq/Ft Plan #120-170
Brand: Houseplans.com
SKU: 120-170
Price: 895.00 USD
Availability: InStock

Key Specs

1346
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Get Personalized Help

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$395.00
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$295.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Unlimited Use License	$395.00
	Allows you to build this home as many times as you want.

Subtotal

$895.00

Or order by phone: 1-800-913-2350

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

Home > Style > Craftsman

Craftsman House Plan 120-170 1346 sq ft, 3 bed, 2.5 bath, 2 floor, 2 garage

Key Specs

1346
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description

In plain view these two very similar units wrap around and compliment each other. From the street you would be hard pressed to tell they are in fact a "duplex". Inside the main living areas are wide open yet cozy. Upstairs the bedrooms share a Jack and Jill style bath and a central Den area for relaxing. While the areas of these two units are close they are not identical. Please call for more info..

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

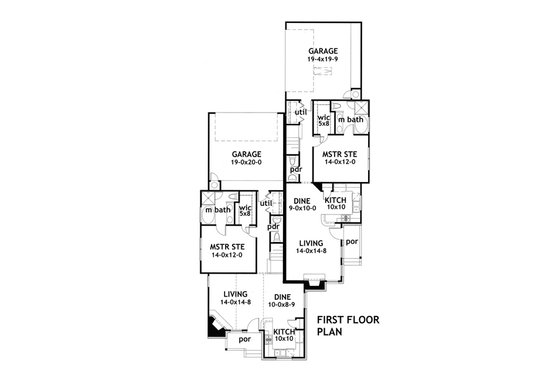

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

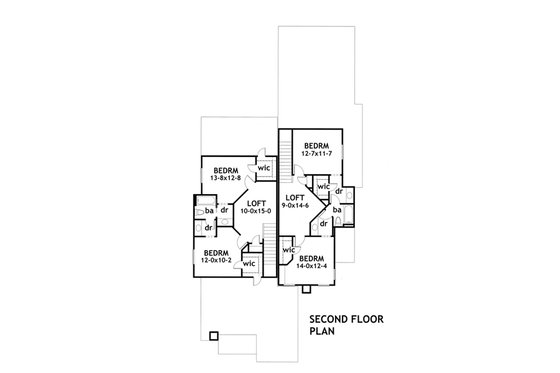

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2.5

Stories: 2

Garages: 2

Dimension

Depth : 87'

Height : 27'

Width : 44'

Area

Total : 1346 sq/ft

Garage : 395 sq/ft

Main Floor : 916 sq/ft

Porch : 47 sq/ft

Upper Floor : 430 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 9'

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 6:12

Roof Framing : stick

Roof Load : 20

Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : 2"x4"

Insulation : 15

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Additional Room Features

Family Room Keeping Room

Hobby Rec Room Game Room

Main Floor Laundry

Garage Features

Rear Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Empty Nester

Jack & Jill Bath

Suited For Vacation Home

Unusual Shape

Code Compliance

Irc 2006

Structural Information Provided

Structural 1st Floor Framing

Structural Roof Framing

What's included in this plan set

See a sample plan set

Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.

* See important information before purchasing
