House Plan 118-109 1644 sq ft, 2 bed, 2 bath, 2 floor, 0 garage

Key Specs

1644
sq ft

2
Beds

2
Baths

2
Floors

0
Garages

Plan Description

This floor plan is 1644 sq ft and has 2 bedrooms and 2 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

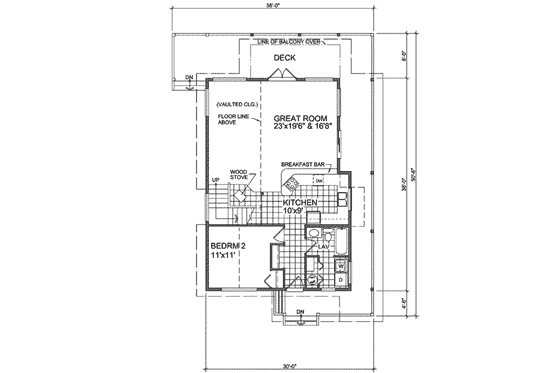

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

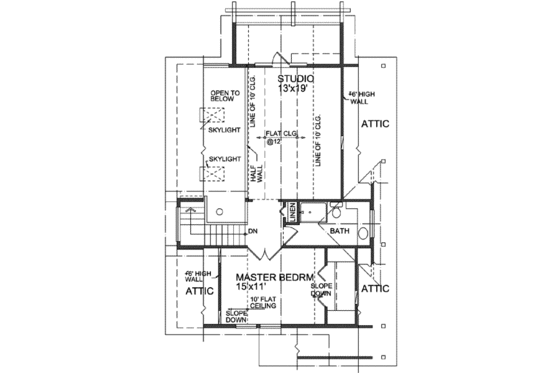

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 2

Baths : 2

Stories: 2

Garages: 0

Dimension

Depth : 51'

Height : 28'

Width : 36'

Area

Total : 1644 sq/ft

Main Floor : 955 sq/ft

Upper Floor : 689 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Main Floor Bedrooms

Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook

Eating Bar

Additional Room Features

Great Room Living Room

Loft

Storage Area

Lot Characteristics

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Rear Porch

Suited For Vacation Home

What's included in this plan set

See a sample plan set

Cover sheet with rendering and art floor plans
General notes and specifications
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
Foundation plan at 1/4″=1′-0″
Main floor plan at 1/4″=1′-0″
Second floor plan at 1/4″=1′-0″, if applicable
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
Electrical floor plans
Minimum of two cross sections at 1/4″=1′-0″
Details as required
All four elevations at 1/4″=1′-0″
Generic detail sheet
Plans are engineered by a structural engineer, but not stamped or sealed
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
Assumed soil bearing capacity 1560 psf
Electrical fixtures / switches / smoke alarms by location only on floor plans
Plumbing fixtures by location only on floor plans
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations

Pricing

Plan Options

PDF Set

Best Value!

$945.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1145.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Crawlspace

$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$95.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
