Plan Description

Rustic shingle wall exterior capped with sleek metal roofing ensures that this detached garage with workshop will blend into and compliment any building site location. The workshop portion of this open floor plan boasts the added convenience of a full bath. Add a partition wall to separate the garage from the workshop for additional comfort or increased security. The unfinished second level with vaulted ceilings is intentionally left undeveloped to allow your personalization of this space.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

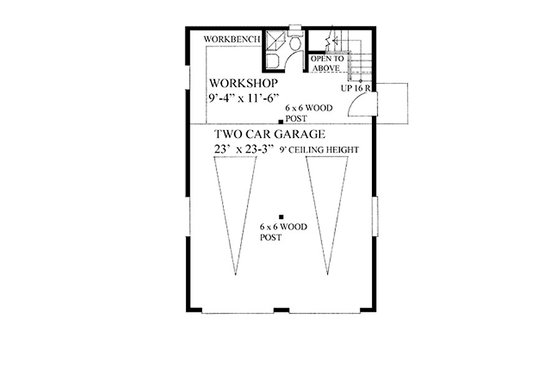

Floor Plan - Main Floor

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Full Specs & Features

Basic Features

Bedrooms : 0

Baths : 1

Stories: 2

Garages: 2

Dimension

Depth : 36'

Height : 24' 2"

Width : 24'

Area

Total : 864 sq/ft

Bonus: 736 sq/ft

Garage: 570 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : upper floor ceiling height is 10' sloping down to 0'

Garage Ceiling : 9'

Main Ceiling : 9'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 12:12

Roof Framing : stick

Roof Load : 47

Roof Type : metal roof

Exterior Wall Framing

Exterior Wall Finish : shingle siding

Framing : 2"x6"

Insulation : 20

Bedroom Features

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Play Flex Room

Storage Area

Unfinished Future Space

Wine Cellar

Workshop

Garage Features

Detached Garage

Front Entry Garage

Garage Under

Oversized Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For View Lot

Outdoor Spaces

Courtyard

Covered Front Porch

Grill Deck Sundeck

Outdoor Kitchen Grill

Economical To Build

Code Compliance

Irc 2006

Nbcc

Structural Information Provided

Foundation Drawing

Structural 2nd Floor Framing

Structural Roof Framing

Rooms

Bonus Room - Unfinished:

736 sq/ft width 15' x depth 23'

Garage:

570 sq/ft width 23' x depth 23' 3"

Work Shop:

294 sq/ft width 9' 4" x depth 11' 6"

What's included in this plan set

See a sample plan set

Cover sheet with rendering and art floor plans
General notes and specifications
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
Foundation plan at 1/4″=1′-0″
Main floor plan at 1/4″=1′-0″
Second floor plan at 1/4″=1′-0″, if applicable
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
Electrical floor plans
Minimum of two cross sections at 1/4″=1′-0″
Details as required
All four elevations at 1/4″=1′-0″
Generic detail sheet
Plans are engineered by a structural engineer, but not stamped or sealed
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
Assumed soil bearing capacity 1560 psf
Electrical fixtures / switches / smoke alarms by location only on floor plans
Plumbing fixtures by location only on floor plans
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
