Ranch House Plan 520-9 2479 sq ft, 2 bed, 3 bath, 1 floor, 0 garage

Name: Ranch Style House Plan - 2 Beds 3 Baths 2479 Sq/Ft Plan #520-9
Brand: Houseplans.com
SKU: 520-9
Price: 2900.00 USD
Availability: InStock

Key Specs

2479
sq ft

2
Beds

3
Baths

1
Floors

0
Garages

Get Personalized Help

Select Plan Set Options

What's included?

Select Foundation Options

	Additional Construction Sets$40.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$100.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$2900.00

Or order by phone: 1-800-913-2350

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

Home > Style > Ranch

Ranch House Plan 520-9 2479 sq ft, 2 bed, 3 bath, 1 floor, 0 garage

Key Specs

2479
sq ft

2
Beds

3
Baths

1
Floors

0
Garages

Plan Description

Room Dimensions Kitchen: 16’-1 7/8” x 17’-2 11/16”(area 278 sq ft) Dining room: 20’-7 1/16” x 17’-2 11/16” (area 354 sq ft) Living room: 21’-3 7/8” x 17’-2 11/16”(area 367 sq ft) Study: 11-9 3/4” x 9’-10 1/8”(area 113 sq ft) Bedroom: 11-9 3/4” x 9’-10 1/8”(area 113 sq ft) Master bedroom: 16-1 5/16” x 14’-1 5/16”(area 222 sq ft)

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

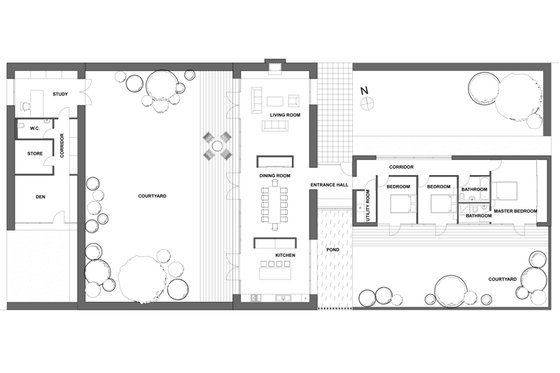

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Other Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 2

Baths : 3

Stories: 1

Garages: 0

Dimension

Depth : 62'

Height : 17'

Width : 137'

Area

Total : 2479 sq/ft

Main Floor : 2479 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Exterior Wall Framing

Exterior Wall Finish : stone

Framing : Concrete block

Additional Room Features

Den Office Study Computer

Loft

Main Floor Laundry

Storage Area

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Grill Deck Sundeck

Wheelchair Adaptable

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

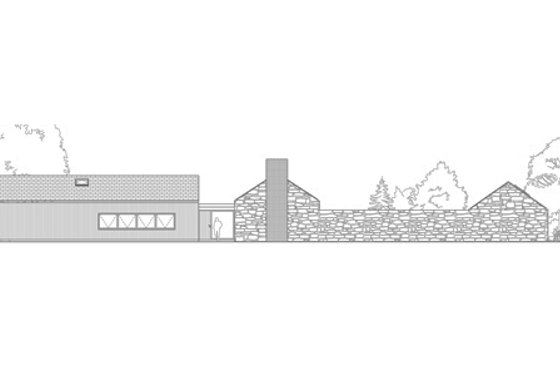

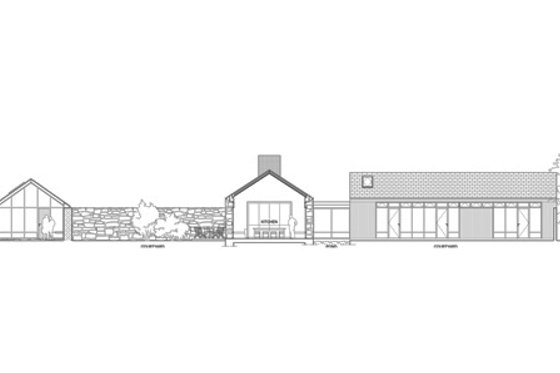

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

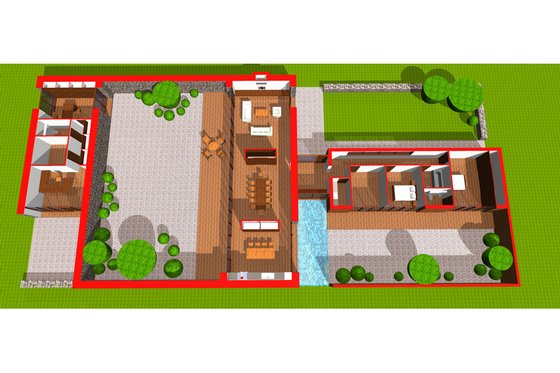

Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Options

5 Copy Set

$2900.00

5 printed plan sets mailed to you.

PDF Set

Best Value!

$2900.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Additional Construction Sets

$40.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
