Barndominium House Plan 120-283 2490 sq ft, 3 bed, 2 bath, 2 floor, 2 garage

Key Specs

2490
sq ft

3
Beds

2
Baths

2
Floors

2
Garages

Plan Description

This home features an innovative approach to the barndominium genre… Some inspiration is derived from the architecture on Santorini Island in Greece – vis-a-vis curved roof forms and white stucco. The materials used to build the majority of this “Quonset hut” system are comprised of sheets of metal 10’ in length and 2’ wide in a modified “V” shape with curvature designed to your specific span needs and shipped worldwide. Spans are totally self-supporting and can reach maximum spans as wide as 150’ and to any length in 2’ increments. Panels are predrilled and every bolt is exactly the same. Pieces can be easily assembled on the ground and stood up by unskilled labor and fastened in place with minimal tools. Perfect for remote locations with unskilled labor. Foundations must be completed prior to erection of panels, but the basic structure is completed once in place. Details provide direction as to how to attach sheetrock and leave space for electrical/mechanical systems. Some creative liberties were taken with regards to the use of partial Q-panels to create wide expanses of glass for view. Steel columns and beams in conjunction with a special bent plate connector allow for overhangs of the system as needed. Partial concrete walls provide a slight boost in height where connector plates attach the Quonset roof system. Additional contemporary styled flat roofs and angled beam supports create exterior living spaces that wrap the structure and complement its form.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

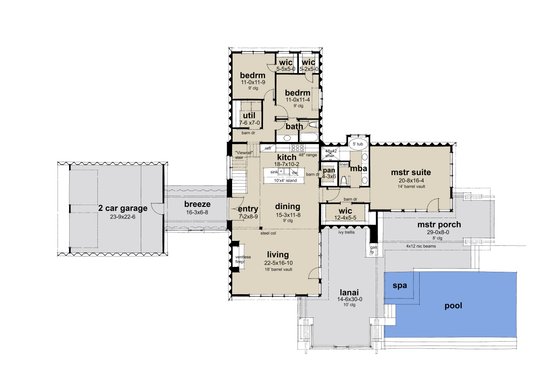

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

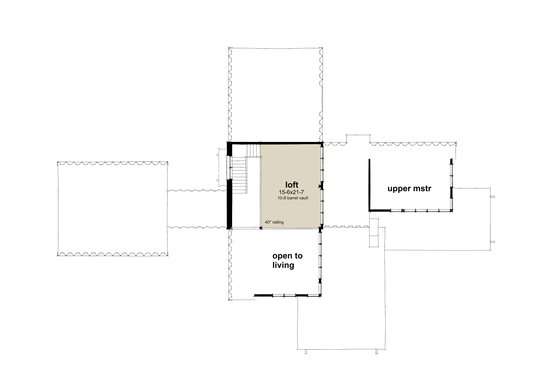

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 2

Garages: 2

Dimension

Depth : 77' 7"

Height : 21' 11"

Width : 112' 6"

Area

Total : 2490 sq/ft

Basement : 2149 sq/ft

Garage : 591 sq/ft

Main Floor : 2149 sq/ft

Porch : 860 sq/ft

Upper Floor : 341 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 0"

Ceiling Details : Living = 18'-6" barrel vault Master Ste = 14'-0' barrel vault

Garage Ceiling : 14' 6"

Main Ceiling : 9'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : barrel vault

Roof Framing : self-supporting quonset hut

Roof Load : 20#/SF LL

Roof Type : metal

Secondary Pitch : 1/4:12

Exterior Wall Framing

Exterior Wall Finish : stucco

Framing : concrete knee walls

Insulation : na

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Exercise Room

Great Room Living Room

Main Floor Laundry

Master Sitting Area

Garage Features

Detached Garage

Side Entry Garage

Lot Characteristics

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Breezeway

Covered Front Porch

Covered Rear Porch

Suited For Vacation Home

Unusual Shape

What's included in this plan set

See a sample plan set

Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.

* See important information before purchasing
Pricing

Plan Options

PDF Set
Best Value!

$1676.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1676.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set

$1796.00

5 printed plan sets mailed to you.

5 Copy and PDF Set

$1876.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Unlimited Build

$1992.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set

$2316.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$2316.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

CAD Single Build

$2316.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Five Copy and PDF Set Unlimited Build

$2432.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set Unlimited Build

$2872.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build

$2872.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace

$316.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$556.00

Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00

Wood 2x4 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$316.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$556.00

Allows you to build one more home for each additional license purchased.

Audio Video Design

$132.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$236.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$132.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Unlimited Use License

$556.00

Allows you to build this home as many times as you want.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
