Mediterranean House Plan 417-510 2597 sq ft, 4 bed, 3 bath, 1 floor, 3 garage

Key Specs

2597
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

Plan Description

Long sightlines and acute angles create dynamic internal vistas and enable easy flow-through of foot traffic. The effects are most noticeable from the foyer, which creates a point of focus for the living room, dining room, and den. To the right, an island kitchen serves the breakfast nook and spacious family room. The den may also convert to a fourth bedroom, if desired. A large pantry provides ample space for food storage. At the other end of the home, a resplendent master suite provides a luxury retreat for homeowners. Majestic columns of brick add warmth to a striking exterior.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

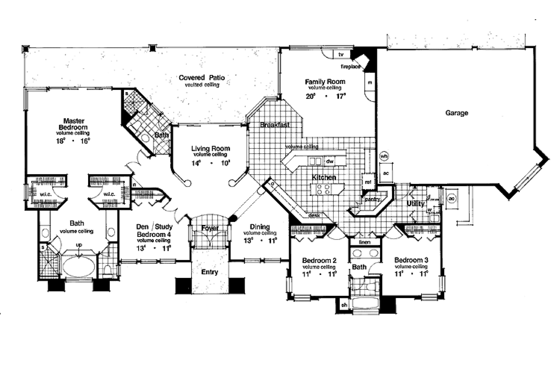

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 3

Stories: 1

Garages: 3

Dimension

Depth : 50'

Height : 25'

Width : 96' 6"

Area

Total : 2597 sq/ft

First Floor: 2597 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

57 sq/ft width 6' x depth 9' 6"

Bathroom 3:

65 sq/ft width 5' 6" x depth 11' 10"

Bedroom 2:

121 sq/ft width 11' x depth 11'

Bedroom 3:

121 sq/ft width 11' x depth 11'

Breakfast Room:

100 sq/ft width 10' x depth 10'

Den/Office or Bedroom 1:

143 sq/ft width 13' x depth 11'

Dining Room:

143 sq/ft width 13' x depth 11'

Foyer:

49 sq/ft width 7' x depth 7'

Garage:

750 sq/ft width 30' x depth 25'

Gathering Room:

340 sq/ft width 20' x depth 17'

Kitchen:

252 sq/ft width 18' x depth 14'

Laundry Room:

35 sq/ft width 5' x depth 7'

Living Room:

140 sq/ft width 14' x depth 10'

Master Bathroom:

225 sq/ft width 15' x depth 15'

Master Bedroom:

288 sq/ft width 18' x depth 16'

Pantry:

35 sq/ft width 5' 2" x depth 6' 11"

Patio:

690 sq/ft width 48' 2" x depth 14' 4"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

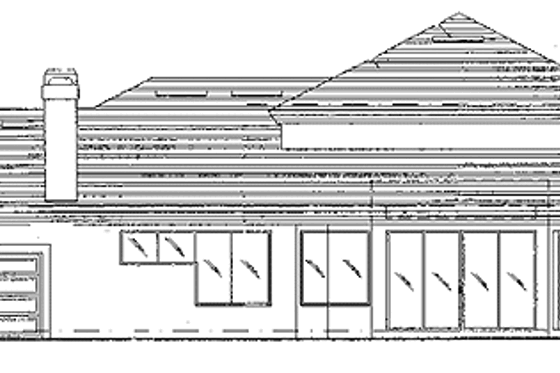

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Options

PDF Set

Best Value!

$1150.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1350.00

5 printed plan sets mailed to you.

5 Copy and PDF Set

$1500.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build

$2300.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$700.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00

Wood 2x4 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Additional Construction Sets

$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$85.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$30.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
