Plan Description


This colonial design floor plan is 2663 sq ft and has 4 bedrooms and 3.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

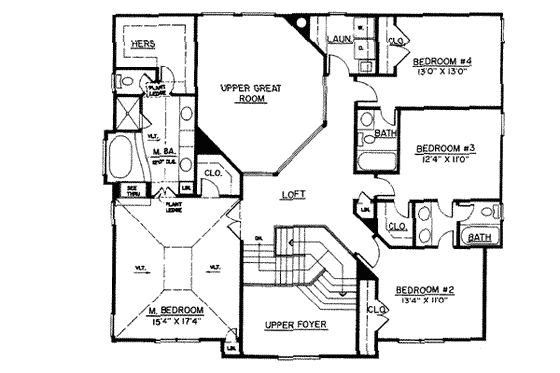

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 3

Dimension

Depth : 42'
Height : 32'
Width : 48'

Area

Total : 2663 sq/ft
First Floor: 1332 sq/ft height 9'
Second Floor: 1331 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : 2"x4"

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Loft
Storage Area
Upstairs Laundry

Garage Features

Oversized Garage
Rear Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot

Outdoor Spaces

Balcony
Courtyard

More

Jack & Jill Bath

Rooms

3rd BR Closet:

20 sq/ft width 5' x depth 4'

Bathroom 2:

50 sq/ft width 10' x depth 5'

Bedroom 2 Closet:

16 sq/ft width 8' x depth 2'

Bedroom 3 Closet:

16 sq/ft width 8' x depth 2'

Bedroom 4 Closet:

12 sq/ft width 6' x depth 2'

Breakfast Room:

130 sq/ft width 13' x depth 10'

Dining Room:

175 sq/ft width 11' 8" x depth 15'

Foyer:

126 sq/ft width 9' x depth 14'

Garage:

528 sq/ft width 27' 4" x depth 19' 4"

Gathering Room:

295 sq/ft width 18' 10" x depth 15' 8"

Hall Bathroom:

35 sq/ft width 7' x depth 5'

Hall Closet:

4 sq/ft width 2' x depth 2'

Kitchen:

225 sq/ft width 15' x depth 15'

Laundry Room:

49 sq/ft width 7' x depth 7'

Living Room:

140 sq/ft width 11' 8" x depth 12'

Master Bathroom:

120 sq/ft width 12' x depth 10'

Master Closet:

20 sq/ft width 4' x depth 5'

Powder Room:

25 sq/ft width 5' x depth 5'

Walk-In Closet:

80 sq/ft width 8' x depth 10'

What's included in this plan set


See a sample plan set
  • Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting: The same details as provided for the first floor.
  • Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
  • Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
  • Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
  • Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
  • General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
* See important information before purchasing
