Southwest House Plan 72-172 2966 sq ft, 4 bed, 3.5 bath, 1 floor, 3 garage

Name: Adobe / Southwestern Style House Plan - 4 Beds 3.5 Baths 2966 Sq/Ft Plan #72-172
Brand: Houseplans.com
SKU: 72-172
Price: 1275.12 USD
Availability: InStock

Key Specs

2966
sq ft

4
Beds

3.5
Baths

1
Floors

3
Garages

Plan Description

This adobe / southwestern design floor plan is 2966 sq ft and has 4 bedrooms and 3.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

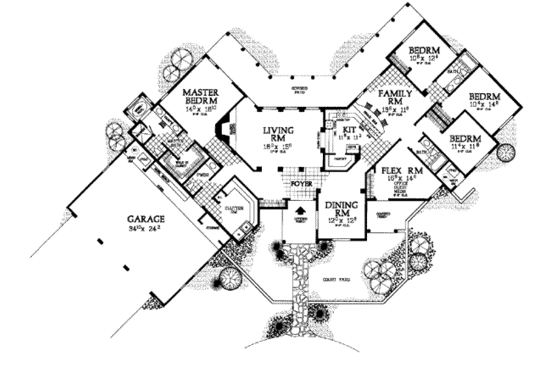

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 3.5

Stories: 1

Garages: 3

Dimension

Depth : 77' 5"

Height : 19'

Width : 116' 7"

Area

Total : 2966 sq/ft

First Floor: 2966 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Combination Truss/Conventional

Roof Type : Build-Up

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Courtyard

Covered Rear Porch

Rooms

3rd BR Closet:

11 sq/ft width 1' 11" x depth 6' 2"

Bedroom 2:

132 sq/ft width 11' 4" x depth 11' 8"

Bedroom 2 Closet:

11 sq/ft width 1' 11" x depth 6' 2"

Bedroom 3:

151 sq/ft width 10' 4" x depth 14' 8"

Bedroom 3 Closet:

11 sq/ft width 1' 11" x depth 6' 2"

Bedroom 4:

131 sq/ft width 10' 8" x depth 12' 4"

Bedroom 4 Closet:

11 sq/ft width 1' 11" x depth 6'

Dining Room:

152 sq/ft width 12' x depth 12' 8"

Foyer:

100 sq/ft width 15' x depth 6' 8"

Garage:

841 sq/ft width 34' 10" x depth 24' 2"

Garage Storage:

23 sq/ft width 2' 8" x depth 8' 9"

Hall Closet:

12 sq/ft width 1' 11" x depth 6' 8"

Kitchen:

130 sq/ft width 11' 8" x depth 11' 2"

Laundry Room:

139 sq/ft width 11' x depth 12' 8"

Living Room:

279 sq/ft width 18' x depth 15' 6"

Master Bathroom:

142 sq/ft width 14' 3" x depth 10'

Master Bedroom:

235 sq/ft width 14' x depth 16' 10"

Master Closet:

85 sq/ft width 10' x depth 8' 7"

Powder Room:

36 sq/ft width 3' 8" x depth 10'

Study:

241 sq/ft width 16' 8" x depth 14' 6"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

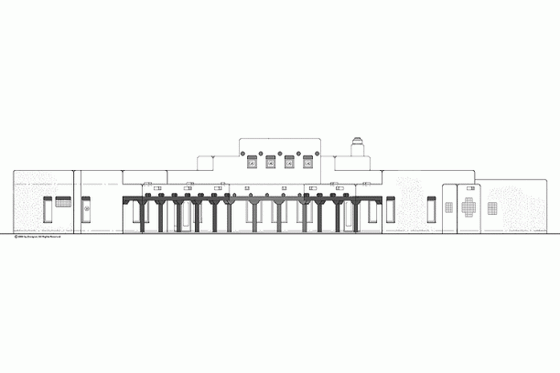

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
