Mediterranean House Plan 120-164 3343 sq ft, 3 bed, 3.5 bath, 2 floor, 2 garage

Key Specs

3343
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

Plan Description

Designed for a narrow lot with a rear entry Garage, this plan still boasts some great features that make it seem bigger than it is. The unique Entry into a private courtyard leads you to the front door by way of a traditional Italian Loggia. The Family Rm enjoys views to this private courtyard, including an exterior fireplace and bbq area, as well as wide expanse of glass/view to the front. The Entry leads you back to a two story Grand Hall which flows into the Dining Room on the right.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

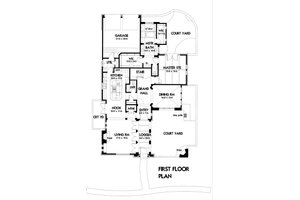

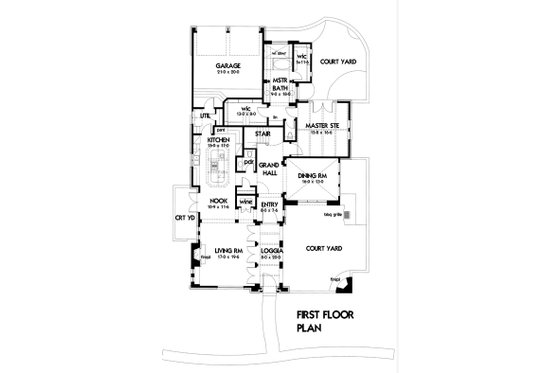

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

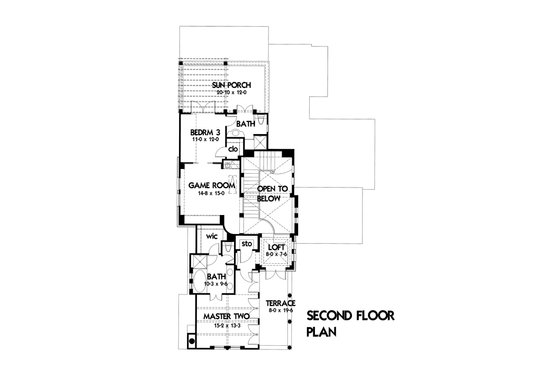

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 3.5

Stories: 2

Garages: 2

Dimension

Depth : 82'

Height : 31' 2"

Width : 49' 5"

Area

Total : 3343 sq/ft

Basement Unfinished: 2249 sq/ft height 12'

First Floor: 2249 sq/ft height 12'

Garage: 494 sq/ft height 12'

Second Floor: 1094 sq/ft height 12'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Two story Foyer, Dining groin vault. Vaulted Master Suite, Barrel vaulted Master Bath

Lower Ceiling : 8'

Main Ceiling : 12'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 4:12

Roof Framing : stick

Roof Load : 20

Roof Type : Conc Tile

Exterior Wall Framing

Exterior Wall Finish : stone and stucco

Framing : 2"x4"

Insulation : 19, 15

Seismic Rating : na

Wind Rating : 20

Bedroom Features

2 Master Suites

Guest Suite

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Wine Cellar

Garage Features

Rear Entry Garage

Rear Garage

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Balcony

Breezeway

Courtyard

Covered Front Porch

Grill Deck Sundeck

Outdoor Kitchen Grill

Empty Nester

Suited For Vacation Home

Wheelchair Adaptable

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing

Structural 1st Floor Framing

Structural 2nd Floor Framing

Structural Roof Framing

Rooms

Bedroom 3:

132 sq/ft width 11' x depth 12'

Dining Room:

208 sq/ft width 16' x depth 13'

Entry:

60 sq/ft width 8' x depth 7' 6"

Game Room:

220 sq/ft width 14' 8" x depth 15'

Garage:

420 sq/ft width 21' x depth 20'

Guest Bedroom:

200 sq/ft width 15' 2" x depth 13' 3"

Kitchen:

255 sq/ft width 15' x depth 17'

Living Room:

331 sq/ft width 17' x depth 19' 6"

Loft:

60 sq/ft width 8' x depth 7' 6"

Loggia:

160 sq/ft width 8' x depth 20'

Master Suite:

258 sq/ft width 15' 8" x depth 16' 6"

Nook:

123 sq/ft width 10' 9" x depth 11' 6"

Sun Room:

249 sq/ft width 20' 10" x depth 12'

Terrace:

156 sq/ft width 8' x depth 19' 6"

What's included in this plan set

See a sample plan set

Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
