Home > Style > Ranch

Ranch House Plan 117-840 3871 sq ft, 2 bed, 3 bath, 1 floor, 3 garage

Key Specs

3871
sq ft

2
Beds

3
Baths

1
Floors

3
Garages

Plan Description

This ranch design floor plan is 3871 sq ft and has 2 bedrooms and 3 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

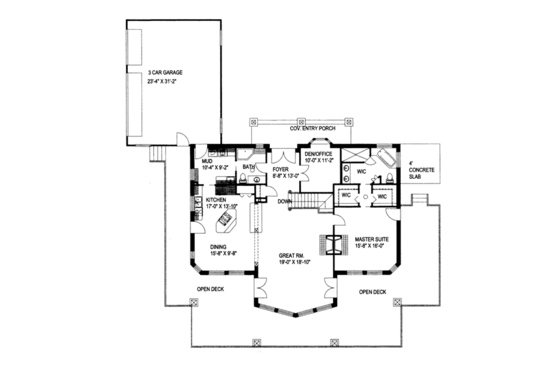

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

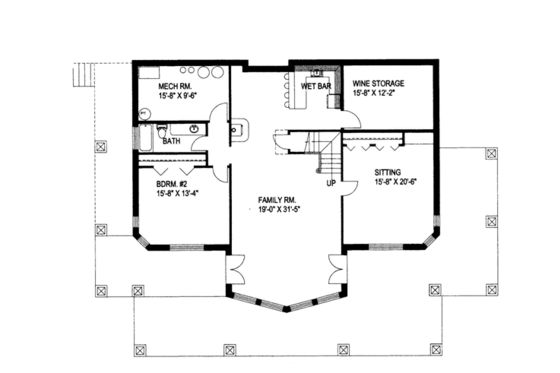

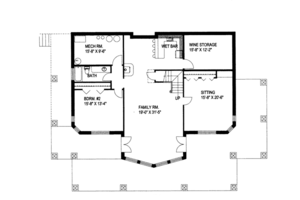

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 2

Baths : 3

Stories: 1

Garages: 3

Dimension

Depth : 76'

Height : 30'

Width : 69'

Area

Total : 3871 sq/ft

Basement Living: 1932 sq/ft height 8'

First Floor: 1939 sq/ft

Garage: 774 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 9'

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : ICF (Insulated Concrete Forms)

Bedroom Features

Fireplace

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Mud Room

Open Floor Plan

Vaulted / Cathedral Ceilings

Wine Cellar

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Deck

Wrap Around Porch

Rooms

Bedroom 2:

width 15' 8" x depth 13' 4"

Covered Rear Deck:

774 sq/ft

Den/Office:

width 10' x depth 11' 2"

Dining Area:

width 15' 8" x depth 9' 8"

Family Room:

width 19' x depth 31' 5"

Foyer:

width 8' 8" x depth 13'

Front porch:

width 25' 1" x depth 6'

Garage:

774 sq/ft width 23' 4" x depth 31' 2"

Great Room:

width 19' x depth 18' 10"

Kitchen:

width 17' x depth 13' 10"

Master Suite:

width 15' 8" x depth 16'

Mechanical Room:

width 15' 8" x depth 9' 6"

Mud Room/Laundry:

width 10' 4" x depth 9' 2"

Sitting Area:

width 15' 8" x depth 20' 6"

Wine Storage:

width 15' 8" x depth 12' 2"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

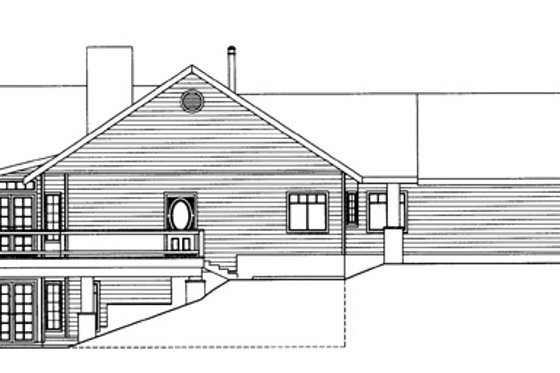

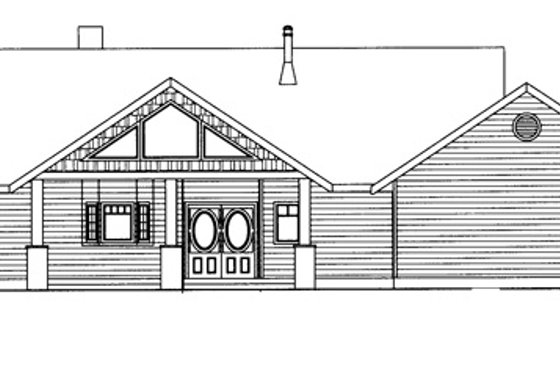

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Options

5 Copy Set

$1436.00

5 printed plan sets mailed to you.

CAD Single Build

$1516.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!

$1516.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set

$1636.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build

$2076.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Walk Out Basement

$0.00

Ideal for a sloping lot, lower level with outdoor access.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Insulated Concrete Forms

$0.00

ICF Block Exterior Walls (Upper Levels may be wood-framed)

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$156.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$132.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$316.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$132.00

Receive an overlay sheet with suggested placement of lighting fixtures.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
