Craftsman House Plan 48-250 3959 sq ft, 4 bed, 4.5 bath, 2 floor, 3 garage

Name: Craftsman Style House Plan - 4 Beds 4.5 Baths 3959 Sq/Ft Plan #48-250
Brand: Houseplans.com
SKU: 48-250
Price: 2668.00 USD
Availability: InStock

Key Specs

3959
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Get Personalized Help

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$225.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$395.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$2668.00

Or order by phone: 1-800-913-2350

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

Home > Style > Craftsman

Craftsman House Plan 48-250 3959 sq ft, 4 bed, 4.5 bath, 2 floor, 3 garage

Key Specs

3959
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description

This craftsman design floor plan is 3959 sq ft and has 4 bedrooms and 4.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

Floor Plan - Main Floor

Reverse

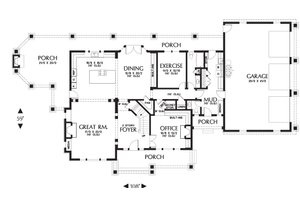

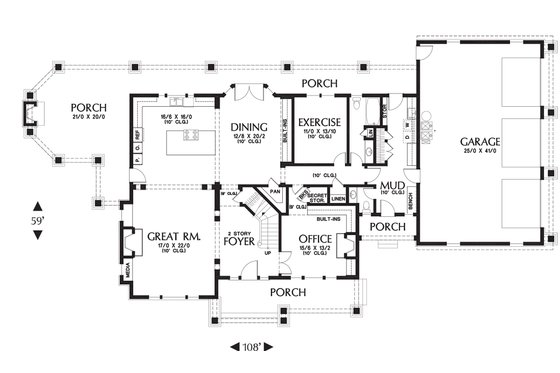

Main level floor plan - 4000 square foot Country Craftsman home

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Reverse

Upper level floor plan - 4000 square foot Country Craftsman home

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 4.5

Stories: 2

Garages: 3

Dimension

Depth : 59'

Height : 37'

Width : 108'

Area

Total : 3959 sq/ft

Bonus: 950 sq/ft

First Floor: 2223 sq/ft

Second Floor: 1713 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Roof Framing : Combination Truss/Conventional

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : 2"x6"

Bedroom Features

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Mud Room

Play Flex Room

Storage Area

Unfinished Future Space

Garage Features

Oversized Garage

Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Wrap Around Porch

Jack & Jill Bath

Rooms

Bedroom 2:

width 13' 2" x depth 11'

Bedroom 3:

width 12' x depth 11'

Bedroom 4:

width 13' 2" x depth 11' 2"

Bonus:

width 22' x depth 39'

Dining room:

width 12' 8" x depth 20' 2"

Excercise:

width 11' x depth 13' 10"

Garage:

width 25' x depth 41'

Great Room:

width 17' x depth 22'

Kitchen:

width 16' 6" x depth 16'

Master bedroom:

width 16' 6" x depth 17' 8"

Office:

width 15' 6" x depth 13' 2"

Right porch:

width 21' x depth 20'

What's included in this plan set

See a sample plan set

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.

Pricing

Plan Options

PDF Set

Best Value!

$2668.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$2868.00

5 printed plan sets mailed to you.

5 Copy and PDF Set

$2918.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build

$5336.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Crawlspace

$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement

$741.00

Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00

Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$225.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$395.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
