Mediterranean House Plan 420-149 4073 sq ft, 4 bed, 3.5 bath, 2 floor, 2 garage

Key Specs

4073
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

Plan Description

This mediterranean design floor plan is 4073 sq ft and has 4 bedrooms and 3.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

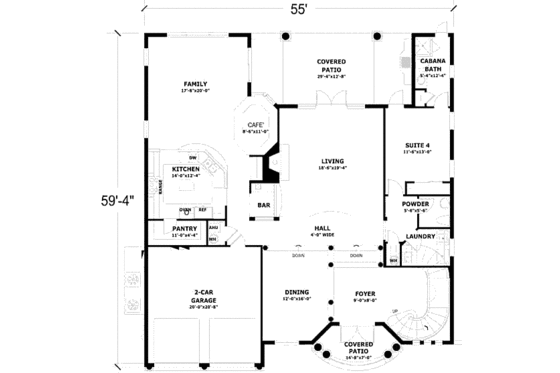

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

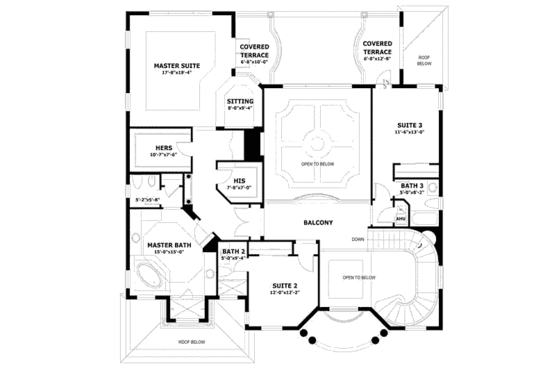

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 3.5

Stories: 2

Garages: 2

Dimension

Depth : 59'

Height : 39'

Width : 55'

Area

Total : 4073 sq/ft

Garage : 444 sq/ft

Main Floor : 2291 sq/ft

Porch : 615 sq/ft

Upper Floor : 1782 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12

Exterior Wall Framing

Framing : Concrete block

Bedroom Features

Main Floor Bedrooms

Split Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Loft

Master Sitting Area

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Jack & Jill Bath
