Craftsman House Plan 132-560 4970 sq ft, 4 bed, 4.5 bath, 2 floor, 4 garage

Key Specs

4970
sq ft

4
Beds

4.5
Baths

2
Floors

4
Garages

Plan Description

With disappearing walls that completely open up the wet bar to the patio, the lower level of this home is ready to party. One of the bedrooms and the game area down here also open up to outside for an immersive indoor-outdoor experience. Wine storage adds to the fun. Upstairs, the great room and master suite feature even more disappearing walls to access the spacious covered deck. Generous storage includes a walk-in pantry in the island kitchen.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

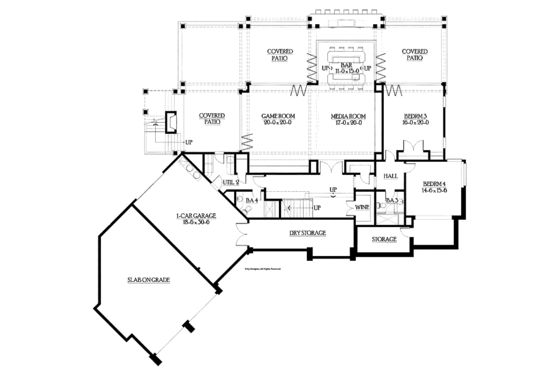

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

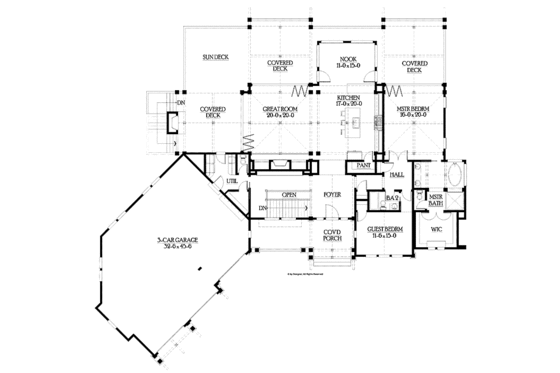

Floor Plan - Main Floor

Reverse

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 4.5

Stories: 2

Garages: 4

Dimension

Depth : 94'

Height : 30'

Width : 100'

Area

Total : 4970 sq/ft

Basement Living: 2470 sq/ft

First Floor: 2500 sq/ft height 10'

Garage: 1955 sq/ft height 10'

Second Floor: 285 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Composition

Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Media Room

Mud Room

Open Floor Plan

Vaulted / Cathedral Ceilings

Wine Cellar

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

Deck

Outdoor Fireplace

Rooms

Bedroom 3:

320 sq/ft width 16' x depth 20'

Bedroom 4:

224 sq/ft width 14' 6" x depth 15' 6"

Game Room:

400 sq/ft width 20' x depth 20'

Garage:

1478 sq/ft width 32' 6" x depth 45' 6"

Garage Two:

564 sq/ft width 18' 6" x depth 30' 6"

Great Room:

400 sq/ft width 20' x depth 20'

Guest Bedroom:

182 sq/ft width 11' 6" x depth 15' 10"

Kitchen:

340 sq/ft width 17' x depth 20'

Loft:

240 sq/ft width 15' x depth 16'

Master Bedroom:

320 sq/ft width 16' x depth 20'

Media Room:

340 sq/ft width 17' x depth 20'

Nook:

165 sq/ft width 11' x depth 15'

What's included in this plan set

See a sample plan set

Purchasing a CAD set gives you a multi-build license.

If you are building this plan in the state of Washington, please call us before placing your order.

This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

Pricing

Plan Options

PDF Set

Best Value!

$2700.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set

$4500.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Daylight Basement

$0.00

Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00

Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$300.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$395.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
