Plan Description


This modern design floor plan is 5230 sq ft and has 4 bedrooms and 4.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

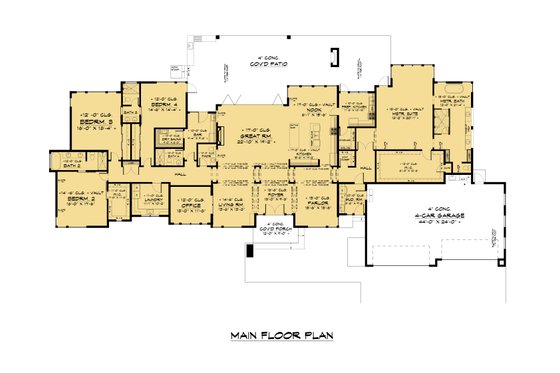

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 1
Garages: 4

Dimension

Depth : 64' 10"
Height : 24' 11"
Width : 146' 3"

Area

Total : 5230 sq/ft
Garage : 1175 sq/ft
Main Floor : 5230 sq/ft
Patios : 1281 sq/ft
Porch : 123 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 1.5/12
Roof Framing : Truss
Secondary Pitch : 1/12

Exterior Wall Framing

Framing : 2x6
Insulation : r-21

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Mud Room

Garage Features

Front Entry Garage

Lot Characteristics

Zero Lot Lines

Outdoor Spaces

Covered Front Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set
All plans are drawn at ¼” scale or larger and include :

  • Cover Sheet: 3D Rendering and Project Information.
  • General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).
  • Floor Plans (lower, main, upper, etc.) showing all doors and windows.
  • Elevations from all four sides showing material callouts.
  • Wall framing and sectional detail sheets.
  • Building Cross Sections showing stair and ceiling height details.
  • Window and Door schedule.
  • Overhead roof plan showing peaks, valleys, and pitch.
  • Foundation Plan showing perimeter and footing details.
  • Misc. notes and details.
  • *Please note that any structural engineering sheets included with this plan set are for reference only.
