Plan Description

Quintessential English Tudor Styled Carriage House

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

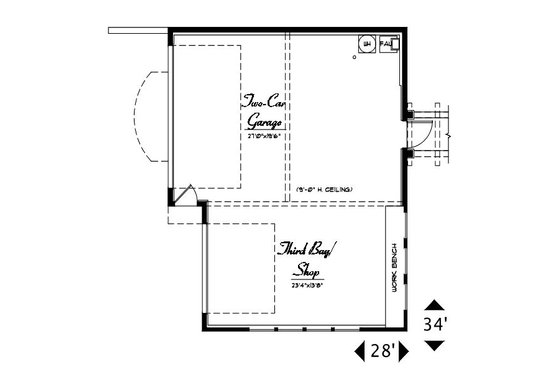

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

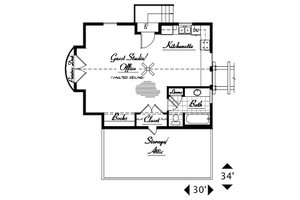

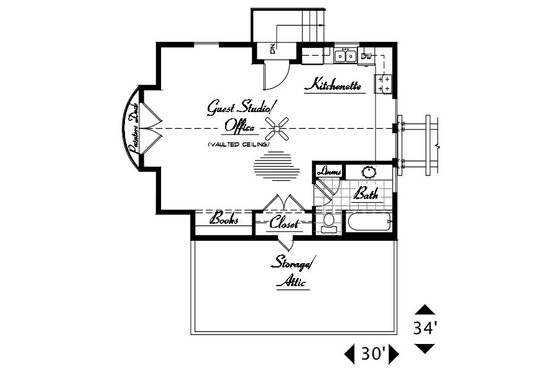

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 1

Baths : 1

Stories: 2

Garages: 3

Dimension

Depth : 34'

Height : 27'

Width : 30'

Area

Total : 642 sq/ft

Garage : 896 sq/ft

Main Floor : 896 sq/ft

Porch : 52 sq/ft

Storage : 134 sq/ft

Upper Floor : 642 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted from 8 foot to 11 foot, 3 inches high at Living Area

Main Ceiling : 9'

Upper Ceiling Ft : 11'

Roof

Primary Pitch : 10:12

Roof Framing : MFD Trusses, 2x12 Rafters

Roof Load : 30lb Snow, 20lb Light Storage

Roof Type : Architectural Comp

Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : Cedar Shake with Manufactured Stone

Framing : Poured in Place Concrete Retaining Walls

Insulation : R-21 Exterior Walls

Seismic Rating : DI

Wind Rating : 80 mph

Bedroom Features

Guest Suite

Main Floor Master Bedroom

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Loft

Master Sitting Area

Play Flex Room

Storage Area

Unfinished Future Space

Workshop

Garage Features

Garage Under

Oversized Garage

RV Garage

Side Entry Garage

Tandem Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Balcony

Breezeway

Covered Front Porch

Covered Rear Porch

Economical To Build

Empty Nester

Suited For Vacation Home

Unusual Shape

Code Compliance

Irc 2003

Structural Information Provided

Foundation Drawing

Structural 2nd Floor Framing

Structural Notes

Structural Roof Framing

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

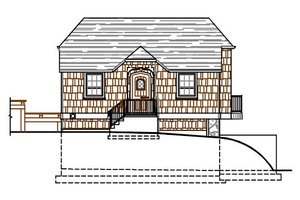

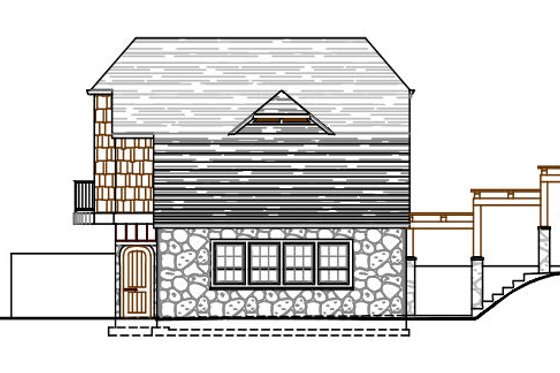

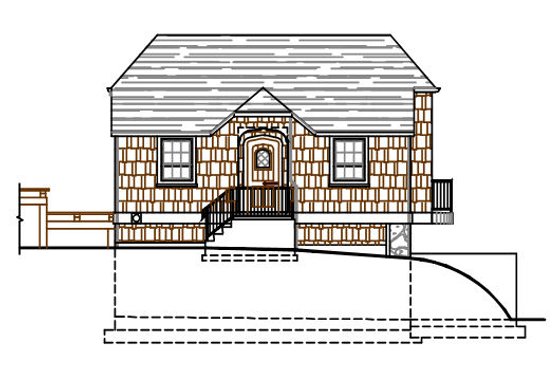

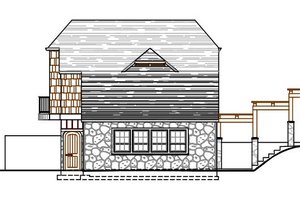

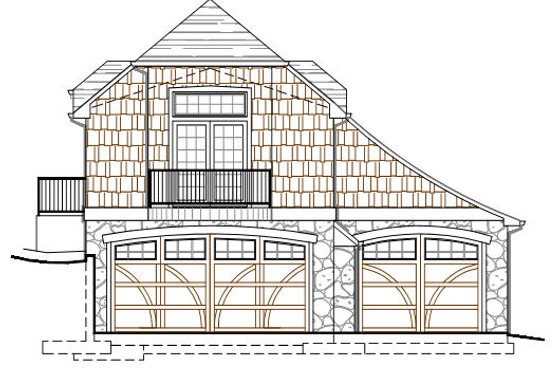

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
