Plan Description

A shingle-style mansion on a grand scale, this American classic displays charm on the outside and luxury within. Its sweeping elevations are highlighted by sculptural columned porches, gazebos, porches, bays, turrets, and dormers. Carefully designed alignments and interior volumes create dramatic spatial sequences, the impact of which are not diminsihed by their practicality. Packed with elegant detail and thoughtful features, this design is a perfect place to escape from the routine of everyday life.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

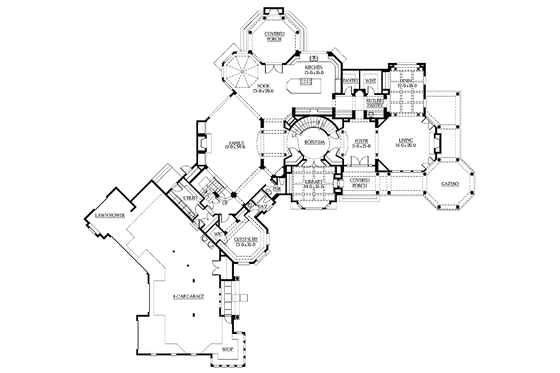

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

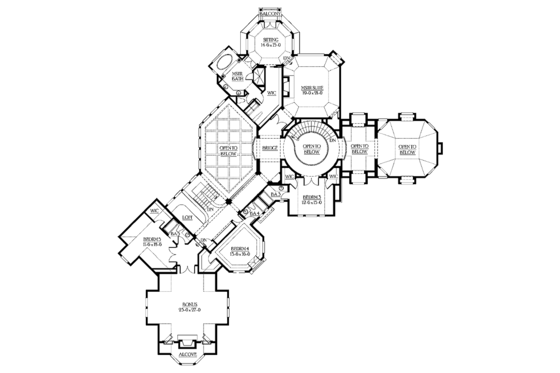

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 5

Baths : 5.5

Stories: 2

Garages: 4

Dimension

Depth : 125' 6"

Height : 36' 4"

Width : 136' 2"

Area

Total : 7400 sq/ft

First Floor: 3970 sq/ft

Garage: 1850 sq/ft

Second Floor: 3430 sq/ft

Storage: 150 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Master Sitting Area

Media Room

Storage Area

Unfinished Future Space

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Outdoor Fireplace

Rooms

Bedroom 3:

187 sq/ft width 12' 6" x depth 15'

Bedroom 4:

216 sq/ft width 13' 6" x depth 16'

Bedroom 5:

212 sq/ft width 11' 6" x depth 18' 6"

Bonus Room - Finished:

621 sq/ft width 23' x depth 27'

Breakfast Nook:

377 sq/ft width 13' x depth 29'

Dining Room:

216 sq/ft width 12' x depth 18'

Family Room:

655 sq/ft width 19' x depth 34' 6"

Foyer:

172 sq/ft width 11' 6" x depth 15'

Guest Suite:

216 sq/ft width 13' 6" x depth 16'

Kitchen:

247 sq/ft width 15' x depth 16' 6"

Library:

239 sq/ft width 14' 6" x depth 16' 6"

Living Room:

380 sq/ft width 19' x depth 20'

Master Sitting Area:

217 sq/ft width 14' 6" x depth 15'

Master Suite:

399 sq/ft width 19' x depth 21'

What's included in this plan set

See a sample plan set

Purchasing a CAD set gives you a multi-build license.

If you are building this plan in the state of Washington, please call us before placing your order.

This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
