Plan Description


This stunning house plan showcases a timeless Mediterranean feel with added Indonesian influences and a splash of Italian flavor without being too heavy. At over 7,000 square feet, this five bedroom and seven bathroom house plan incorporates a breathtaking 27-feet tall great room that offers magnificent pool, outdoor living and rear yard views through expansive pocketing sliding glass doors. The great room layout of this Mediterranean home plan lends itself to a casual lifestyle to spend time playing golf or tennis or just relaxing by the resort style pool reading a book. The floor plan flows easily from one room to the other without any separation.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

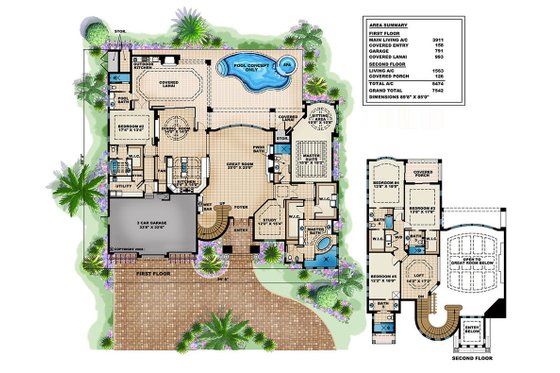

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 7
Stories: 2
Garages: 3

Dimension

Depth : 85'
Height : 30'
Width : 89' 8"

Area

Total : 5474 sq/ft
Garage : 791 sq/ft
Main Floor : 3911 sq/ft
Porch : 993 sq/ft
Upper Floor : 1563 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Double Coffer, Coffer, Flat, Barrel
Main Ceiling : 11'
Upper Ceiling Ft : 26' 2"

Roof

Primary Pitch : 6:12
Roof Framing : Mfg Trusses
Roof Type : Cement Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : CMU, 2x6 wood frame

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Upstairs Laundry
Wet Bar

Garage Features

Front Entry Garage
Oversized Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Rear Porch
Outdoor Kitchen Grill

More

Empty Nester
Jack & Jill Bath
Suited For Vacation Home
Wheelchair Adaptable

What's included in this plan set
