Plan Description


A butterfly roof shape distinguishes this contemporary design that derives inspiration from mid-20th-century modern architecture. Two low-pitched shed roofs descend near the center of the floor plan, at a breezeway in this case, to deliver a unique form favored among midcentury modern fans. An innovative floor layout offers an ensuite separated from the main house, perfect for a home office, study, guest suite, home gym, playroom, home theater, or hobby space. Build your butterfly modern dream home with this one-of-a-kind house plan.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

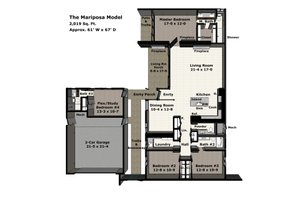

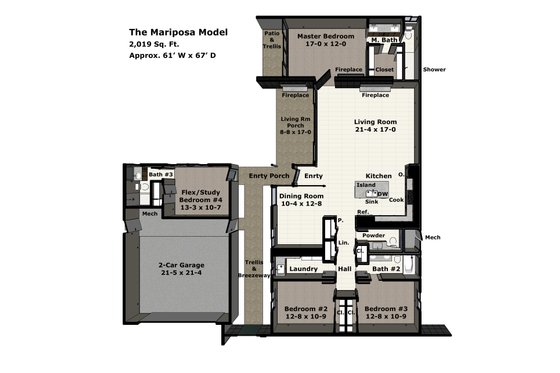

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 1
Garages: 2

Dimension

Depth : 67'
Height : 13' 6"
Width : 61'

Area

Total : 2019 sq/ft
Bonus : 229 sq/ft
Garage : 510 sq/ft
Main Floor : 1790 sq/ft
Patios : 320 sq/ft
Porch : 205 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Sloped ceiling interiors up to 11 feet 6 inches.
Garage Ceiling : 8'
Main Ceiling : 11' 6"

Roof

Primary Pitch : 1:12
Roof Framing : Truss Joist

Exterior Wall Framing

Exterior Wall Finish : Stucco & Masonry Veneer
Framing : 2x4

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island

Additional Room Features

Den Office Study Computer
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Play Flex Room

Garage Features

Detached Garage
Front Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Breezeway
Covered Front Porch
Covered Rear Porch

More

Empty Nester
Suited For Vacation Home
Unusual Shape
Wheelchair Adaptable

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
