Plan Description

This beach design floor plan is 5168 sq ft and has 3 bedrooms and 4 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

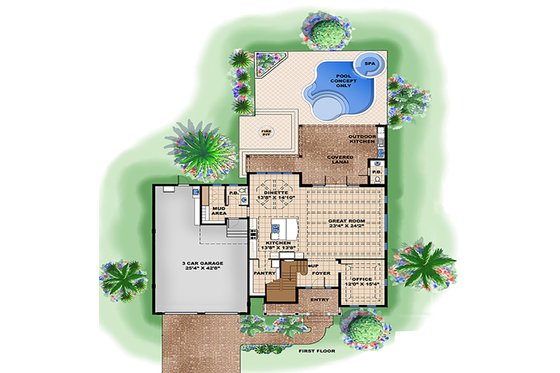

Floor Plan - Main Floor

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

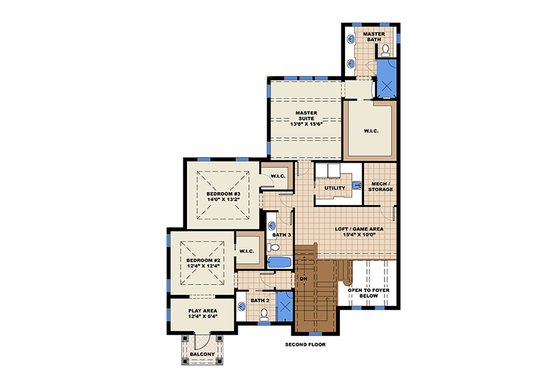

Floor Plan - Upper Floor

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 4

Stories: 2

Garages: 3

Dimension

Depth : 64' 10"

Height : 30'

Width : 64' 2"

Area

Total : 5168 sq/ft

Bonus : 43 sq/ft

Garage : 979 sq/ft

Main Floor : 1719 sq/ft

Patios : 559 sq/ft

Porch : 142 sq/ft

Upper Floor : 1726 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : coffer w/ beams, coffered, Vault- T&G, flat/beams, flat

Main Ceiling : 10'

Roof

Primary Pitch : 6:12

Roof Framing : Manufactured trusses

Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Siding, stucco

Framing : CMU

Bedroom Features

Guest Suite

Split Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Storage Area

Upstairs Laundry

Workshop

Garage Features

Front Entry Garage

Oversized Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

Wheelchair Adaptable

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Material Labels
Foor-to-Floor Heights
Roof Slope Indicators

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous General Notes
Stairway details (if applicable)

Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
