Mediterranean House Plan 420-295 5176 sq ft, 5 bed, 6.5 bath, 2 floor, 3 garage

Key Specs

5176
sq ft

5
Beds

6.5
Baths

2
Floors

3
Garages

Plan Description

This mediterranean design floor plan is 5176 sq ft and has 5 bedrooms and 6.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

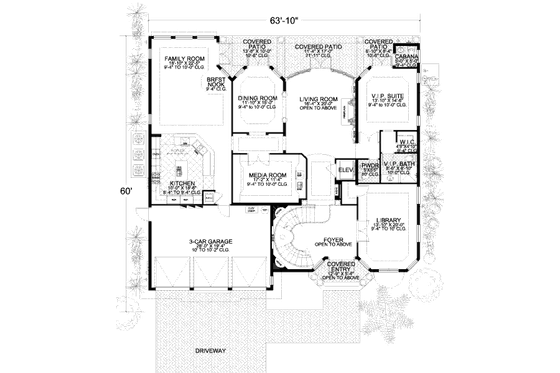

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 5

Baths : 6.5

Stories: 2

Garages: 3

Dimension

Depth : 60'

Height : 30'

Width : 64'

Area

Total : 5176 sq/ft

Garage : 576 sq/ft

Main Floor : 2726 sq/ft

Porch : 681 sq/ft

Upper Floor : 2450 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 5:12

Exterior Wall Framing

Framing : Concrete block

Bedroom Features

2 Master Suites

Guest Suite

Main Floor Bedrooms

Split Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Additional Room Features

Family Room Keeping Room

Loft

Media Room

Garage Features

Oversized Garage

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Jack & Jill Bath

What's included in this plan set

See a sample plan set

Floor Plans:

Each plan comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.

Kitchen and Bath Layouts:

The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.

Elevations:

All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.

Sections:

Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.

Structural Plans:

All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.

Foundation Plan:

Most Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.

Roof Plan:

Roof and Roof Framing Plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.

Mechanical Plans:

Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.

Electrical Plans:

Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.

Plumbing Plan:

Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Pricing

Plan Options

5 Copy Set

$1400.00

5 printed plan sets mailed to you.

8 Copy Set

$1550.00

8 printed plan sets mailed to you.

PDF Set

Best Value!

$1700.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1700.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$2600.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$150.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Single Set

$1200.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
