Plan Description

With over 1,100 square feet, this ranch home was designed to make use of every inch of livable space. The simple roof line, makes this home affordable to build without the worry of losing curb appeal. The large front porch is an additional bonus space thatâ€™s perfect for a quiet evening of relaxation. The open floor plan includes the kitchen directly to the left of the entry, and a dining/living room combination space that makes entertaining a breeze. Three bedrooms lie to the left of the home behind the garage and include a master bedroom with walk-in closet. The two-stall garage has side access off of the exterior entry rounding out the design of this home.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

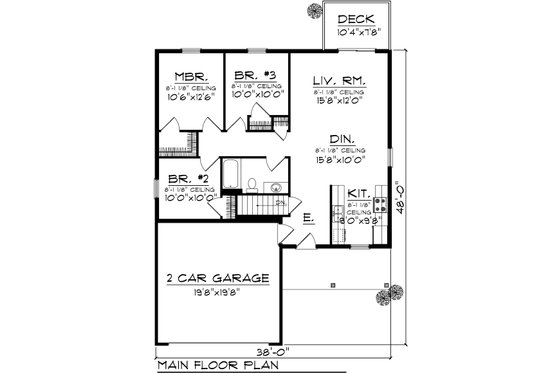

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 1

Stories: 1

Garages: 2

Dimension

Depth : 48'

Height : 16' 8"

Width : 38'

Area

Total : 1139 sq/ft

First Floor: 1139 sq/ft height 8'

Garage: 405 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Roof Load : 47

Exterior Wall Framing

Exterior Wall Finish : Shake / Siding

Framing : 2 x 6

Insulation : R-19

Bedroom Features

Walk In Closet

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Grill Deck Sundeck

Economical To Build

Energy Efficient Features

Energy Efficient Design

Rooms

Basement Foundation:

1824 sq/ft width 38' x depth 48'

Bedroom 2:

100 sq/ft width 10' x depth 10'

Bedroom 2 Closet:

7 sq/ft width 2' 1" x depth 3' 10"

Bedroom 3:

100 sq/ft width 10' x depth 10'

Bedroom 3 Closet:

7 sq/ft width 3' 6" x depth 2' 1"

Deck:

79 sq/ft width 10' 4" x depth 7' 8"

Dining Room:

156 sq/ft width 15' 8" x depth 10'

Foyer:

34 sq/ft width 7' 8" x depth 4' 6"

Garage:

386 sq/ft width 19' 8" x depth 19' 8"

Hall:

59 sq/ft width 14' 9" x depth 4'

Hall Bathroom:

60 sq/ft width 10' 8" x depth 5' 8"

Hall Closet:

5 sq/ft width 2' 5" x depth 2' 1"

Kitchen:

77 sq/ft width 8' x depth 9' 8"

Living Room:

188 sq/ft width 15' 8" x depth 12'

Master Bedroom:

131 sq/ft width 10' 6" x depth 12' 6"

Master Closet:

24 sq/ft width 6' 2" x depth 4'

Porch - Front:

120 sq/ft width 17' 8" x depth 6' 10"

What's included in this plan set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
