Ranch House Plan 70-1047 1664 sq ft, 3 bed, 2 bath, 1 floor, 3 garage

Name: Ranch Style House Plan - 3 Beds 2 Baths 1664 Sq/Ft Plan #70-1047
Brand: Houseplans.com
SKU: 70-1047
Price: 973.00 USD
Availability: InStock

Key Specs

1664
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Get Personalized Help

Select Plan Set Options

What's included?

Select Foundation Options

	Right-Reading Reverse	$395.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$80.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$295.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Mirror Reversed Sets$75.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$973.00

Or order by phone: 1-800-913-2350

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

Home > Style > Ranch

Ranch House Plan 70-1047 1664 sq ft, 3 bed, 2 bath, 1 floor, 3 garage

Key Specs

1664
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Plan Description

In just over 1,600 square feet, youâ€™ll enjoy three-bedrooms, an open plan design and curb appeal that is hard to beat. The entry draws you forward into the home where youâ€™ll find the great room, kitchen and dining area that create the main living area of the home. A breakfast bar in the kitchen provides additional seating for guests as mom prepares the evening meal. The bedroom suite lies to the right of the home and includes a master bedroom with a step ceiling, on-suite bathroom and walk-in closet. Two additional bathrooms lie to the front of the master with access to the full bath just outside in the hall. A three-stall garage with extra storage completes the home.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

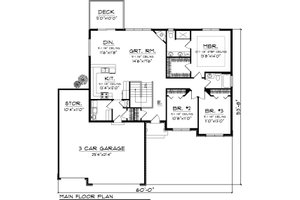

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 1

Garages: 3

Dimension

Depth : 53' 8"

Height : 21' 3"

Width : 60'

Area

Total : 1664 sq/ft

First Floor: 1664 sq/ft

Garage: 750 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Master Bedroom, 10' Step

Main Ceiling : 9'

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Roof Load : 47

Secondary Pitch : 7:12

Exterior Wall Framing

Exterior Wall Finish : Siding, Shake, Stone

Framing : 2 x 6

Insulation : 19

Bedroom Features

Walk In Closet

Kitchen Features

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Storage Area

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Grill Deck Sundeck

Rooms

Basement:

width 60' x depth 53' 8"

Bathroom 2:

width 8' 8" x depth 5' 3"

Bedroom 2:

width 10' 8" x depth 11'

Bedroom 2 Closet:

width 70' x depth 2' 1"

Bedroom 3:

width 11' x depth 13'

Bedroom 3 Closet:

width 6' 6" x depth 2' 1"

Deck:

width 12' x depth 10'

Dining:

width 11' 6" x depth 11' 8"

Foyer:

width 8' 6" x depth 4' 3"

Garage:

750 sq/ft width 29' 4" x depth 21' 4"

Garage Storage:

750 sq/ft width 10' 4" x depth 11'

Great Room:

width 14' 6" x depth 17' 6"

Hall:

width 13' 4" x depth 3' 6"

Hall Closet:

width 2' 1" x depth 4' 3"

Kitchen:

width 13' 4" x depth 12'

Laundry:

width 7' 4" x depth 7'

Master Bath:

width 8' x depth 9'

Master Bedroom:

width 13' 8" x depth 14'

Master Walk In Closet:

width 8' x depth 6' 10"

Pantry:

width 1' 10" x depth 2' 6"

Porch Front:

width 7' 8" x depth 4' 8"

What's included in this plan set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
