Plan Description

This ranch design floor plan is 1520 sq ft and has 3 bedrooms and 2 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

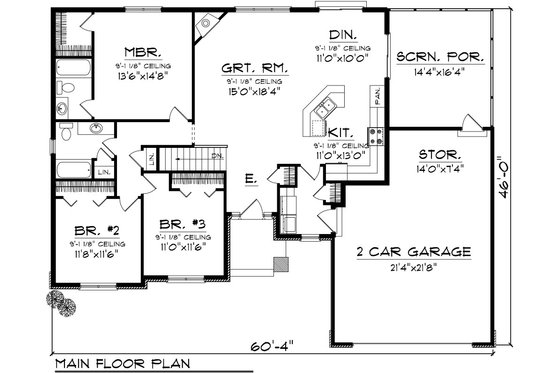

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 1

Garages: 2

Dimension

Depth : 46'

Height : 20' 8"

Width : 60' 4"

Area

Total : 1520 sq/ft

First Floor: 1520 sq/ft height 9'

Garage: 585 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47

Roof Type : shingle

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Siding, Shake, Stone

Framing : 2x6

Insulation : R-19

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Sunroom

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Screened Porch

Rooms

Basement:

width 60' 4" x depth 46'

Bath 2:

width 8' x depth 7' 9"

Bedroom 2:

width 11' x depth 11' 6"

Bedroom 2 Closet:

width 8' x depth 2' 1"

Bedroom 3:

width 11' x depth 11' 6"

Dining Room:

width 11' x depth 10'

Foyer:

width 7' x depth 6' 6"

Garage:

585 sq/ft width 21' 4" x depth 21' 8"

Great Room:

width 15' x depth 18' 4"

Kitchen:

width 11' x depth 13'

Laundry:

width 7' x depth 6' 4"

Master Bath:

width 5' x depth 8' 4"

Master Bedroom:

width 13' 6" x depth 14' 8"

Master Closet:

width 5' x depth 6'

Porch Front:

width 8' 4" x depth 7' 4"

Porch Screened:

width 14' 4" x depth 16' 4"

Storage:

width 14' x depth 7' 4"

What's included in this plan set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
