Plan Description


If you’re looking for maximum living space in a small ranch, this just might be the plan for you. Affordable to build, this design packs a lot of punch in just over 1,000 square feet without compromising the curb appeal that’s so important to homeowners. As you enter the home, you are greeted with a wide open floor plan that includes the living room off to your left, a dining area followed by the kitchen, and a patio door that leads you to the deck off back. Three bedrooms lie to the left of the entry for maximum privacy from everyday noise. A two-stall garage leads to the laundry room just off the entry to complete this ranch home.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

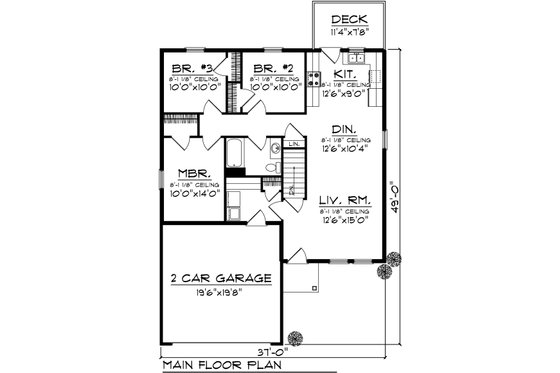

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 1
Stories: 1
Garages: 2

Dimension

Depth : 49'
Height : 16' 5"
Width : 37'

Area

Total : 1183 sq/ft
First Floor: 1183 sq/ft height 8'
Garage: 398 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 5:12
Roof Framing : Truss
Roof Load : 47

Exterior Wall Framing

Exterior Wall Finish : Gingerbread / Siding
Framing : 2 x 6
Insulation : R-19

Bedroom Features

Walk In Closet

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build

Energy Efficient Features

Energy Efficient Design

Rooms

Bedroom 2:

100 sq/ft width 10' x depth 10'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Deck:

86 sq/ft width 11' 4" x depth 7' 8"

Dining Room:

129 sq/ft width 12' 6" x depth 10' 4"

Garage:

383 sq/ft width 19' 6" x depth 19' 8"

Kitchen:

112 sq/ft width 12' 6" x depth 9'

Living Room:

187 sq/ft width 12' 6" x depth 15'

Master Bedroom:

140 sq/ft width 10' x depth 14'
