Craftsman House Plan 70-1192

Key Specs


Plan Sq Ft

1836
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$395.00
Additional Construction Sets$80.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$100.00
$295.00
$39.00
Mirror Reversed Sets$75.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal
$1006.00
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

1836
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Plan Description


• An angled garage, along with craftsman details gives this charming ranch design a curb appeal with high impact. • A 14’ entry leads you to the great room with a dramatic 15’ beamed ceiling. • The kitchen is angled to the left of the entry and includes a center island that flows into the dining room. • The master suite is located to the right of the entry and includes a spacious walk-in closet and 9’ ceilings. • The second bedroom is just off the entry to the left. • A screen porch with a deck are found off the dining room to the back of the home to take advantage of rear views.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

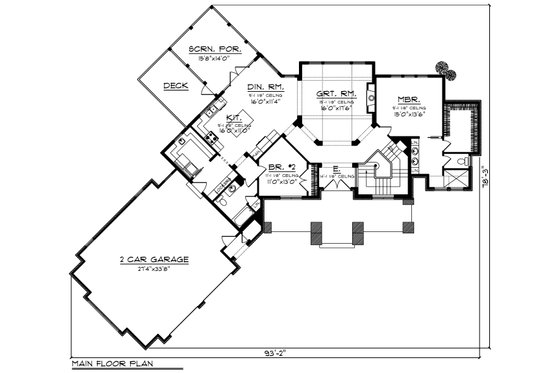

Floor Plan - Main Floor
