Ranch House Plan 70-1491 1742 sq ft, 3 bed, 2 bath, 1 floor, 3 garage

Name: Ranch Style House Plan - 3 Beds 2 Baths 1742 Sq/Ft Plan #70-1491
Brand: Houseplans.com
SKU: 70-1491
Price: 973.00 USD
Availability: InStock

Key Specs

1742
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Get Personalized Help

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$395.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$80.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$295.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Mirror Reversed Sets$75.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$973.00

Or order by phone: 1-800-913-2350

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!

Cost to Build Reports

Only $1.99 for Black Friday
Use Code CTBBF (limit 1)

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

Home > Style > Ranch

Ranch House Plan 70-1491 1742 sq ft, 3 bed, 2 bath, 1 floor, 3 garage

Key Specs

1742
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Plan Description

Additional Use License

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

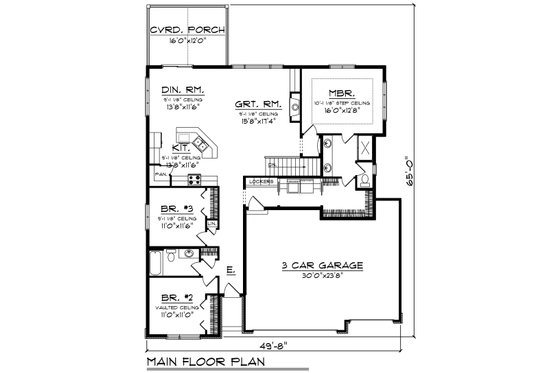

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 1

Garages: 3

Dimension

Depth : 65'

Height : 21'

Width : 49' 8"

Area

Total : 1742 sq/ft

Garage : 697 sq/ft

Main Floor : 1742 sq/ft

Porch : 212 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted ceiling in Bedroom 2; 9' 1" to 10' 1" ceiling in Master Bedroom

Main Ceiling : 9'

Roof

Primary Pitch : 4:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Shingle

Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Stone/siding/stucco

Framing : 2 x 6

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Mud Room

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Economical To Build

Empty Nester

Rooms

Bedroom 2:

width 11' x depth 11'

Bedroom 3:

width 11' x depth 11' 6"

Covered Front Porch:

width 4' 8" x depth 6'

Covered Rear Porch:

width 16' x depth 12'

Dining Room:

width 13' 8" x depth 11' 6"

Garage:

width 30' x depth 23' 8"

Great Room:

width 15' 8" x depth 17' 4"

Hall Bath :

width 9' 8" x depth 5' 4"

Kitchen:

width 13' 8" x depth 11' 6"

Laundry:

width 5' 6" x depth 8'

Master Bath:

width 9' 8" x depth 8'

Master Bedroom:

width 16' x depth 12' 8"

Master Closet:

width 8' 8" x depth 7' 8"

Mud Room:

width 6' 4" x depth 5' 8"

Pantry:

width 4' x depth 4'

What's included in this plan set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Pricing

Plan Options

5 Copy Set

$973.00

5 printed plan sets mailed to you.

8 Copy Set

$1016.00

8 printed plan sets mailed to you.

PDF Set

Best Value!

$1215.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1215.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1921.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Basement

$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$395.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$395.00

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00

Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$395.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$75.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
